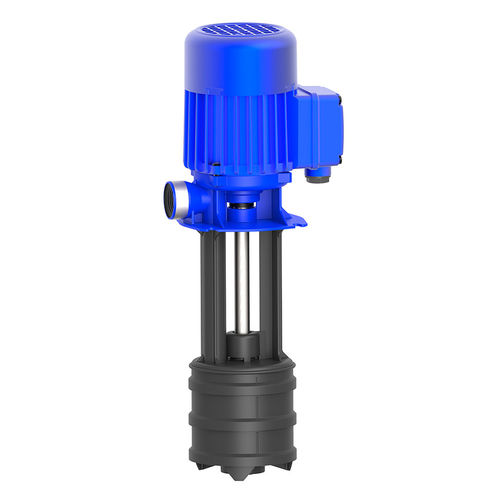

Plastic pump KTF25...54/KTF81...83 seriesfor industrial waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Fluid
- for industrial water, for chemicals
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- chemical, for the beverage industry, for the printing industry
- Applications
- feed, for cooling systems
- Material
- plastic
- Voltage
- 380 V, 460 V
- Protection level
- immersion
- Other characteristics
- compact, multi-stage
- Flow
Max.: 100 l/min
(26.41721 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 42 m
(137'09" )Min.: 0 m
(0'00" )- Power
Max.: 0.37 kW
(0.5 hp)Min.: 0.05 kW
(0.07 hp)- Height
153 mm, 197 mm, 214 mm, 239 mm
(6.02 in, 7.76 in, 8.43 in, 9.41 in)- Weight
Max.: 5.6 kg
(12.35 lb)Min.: 2.6 kg
(5.73 lb)
Description
Immersion Pumps in Plastics
series KTF are suitable for various water supply problems.
These pumps are also suitable for a wide range of chemical liquids.
No shaft seal is required, due to the construction.
Applications
Types of fluid - - Industry water; warm, cold, with and without chemical admixtures, distilled, de-ionnized -
Kinematic viscosity - - ...12 mm²/s (12 cSt) -
Pumping temperature - - -10...+60° C
Construction
Pump body - - PPS
Cover - - PP
Impellers - - PPS
Shaft - - 1.4104
Optional: - -
Shaft - - CrMo
Optional:
These models are also available with single phase motor.
- -
Noise level - - 47 dBA (KTF25...KTF51)
48 dBA (KTF52...KTF83)
