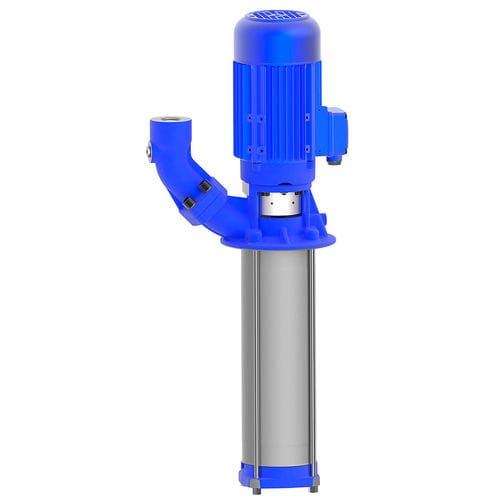

Immersion pump (S)TH6 series

for industrial waterfor coolantfor lubricants

Immersion Pumps series TH and FH use closed impellers in order to minimize power consumption and to optimize hydraulic pump efficiencies. In addition, the TH series offers high pressures at short immersion depths. Inline pumps of the series FH can be used as boostingpumps if provided with positive inlet pressure. This inlet pressure can be provided by the central coolant supply or a feed pump. In such a setup, pumps of the series FH can raise the incoming pressure by up to 26 bar. Extended length is possible. See mechanical/hydraulic features within the technical information section. Applications Types of fluid - - Industry water coolants cooling/cutting oils - Kinematic viscosity - - 1 mm²/s (1 cSt) higher viscosity upon request - Pumping temperature - - 0...80° C - Construction Pump body - - cast iron Cover - - cast iron Impellers - - CrNi-steel Shaft - - CrNi-steel Diffusers - - CrNi-steel Mechanical seal - - SiC O-rings - - Viton Optional: - - Pump body - - bronze CrNi-steel Cover - - bronze CrNi-steel Pole-changing motor - - 4 - 2 poles - - Noise level - - 58 dBA ((S)TH603...(S)TH607) 63 dBA ((S)TH608...(S)TH618) 71 dBA ((S)TH619...(S)TH632)
