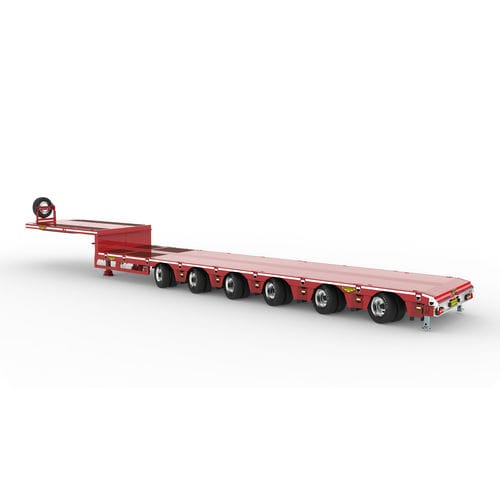

6-axle semi-trailer

towedwith hydraulic suspensions

6-axle hydraulically operated SL semi-low loader Tried and tested stability for your heavy load This completely though-out chassis is the solution for the heavier segment! The independent suspension provides an exceptionally low tare weight as a result of which the most favourable load capacity is created. The 6-axle SL semi low loader has already been used successfully by many customers. See below for the specifications of our most popular design. As you have come to expect from us, you can also get a 6-axle SL semi low loader according to your specifications. Tap into our engineers' surprising range of options! We will be happy to help you configure your own 6-axle SL semi low loader. You can contact one of our employees for this at any time with no obligation. General specifications Single-extendible Independent suspension Hydraulic suspension Hydraulically operated from the kingpin Stable load floor Ride height 850 mm App. 78.5 T load capacity Technical specifications 25 T kingpin load 72 T bogie load App. 18.5 T tare weight 57° steering angle Bed height from 790 mm Fixed gooseneck Automatic alignment system Remote steering Low-maintenance steering control system 240 mm high side bar Chequered plate floor level with the side bar Twistlock plates for containers: 1x20 ft, 1x30 ft, 1x40 ft, 1x45 ft All lines protected inside the beam
