Process oxygen generator

industrialPSA

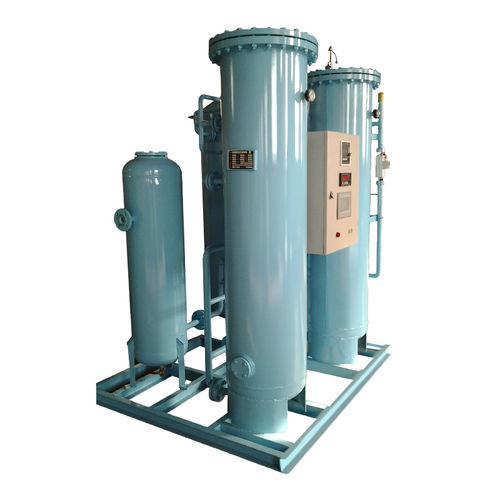

BROTIE Industrial PSA Oxygen Generator (BRIO series) Principles: BROTIE Industrial Oxygen generation system incorporates one air compressor, one refrigerant air dryer and filters, main oxygen generator and related air, oxygen buffer tanks. Compressed air is purified through the air dryer and filters to a certain level for main generator to work with. The compressed air is then stored in the air buffer tank integrated in the oxygen generator for smooth supply of compressed air thus to reduce fluctuation of work demand. The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen purity is continuously monitored by oxygen analyzer. The pressure in the oxygen buffer tank is approximate 4bar, it can be adjustable from 0.1bar to 4bar by the pressure regulator. Applications: 1, Burning process: for glass craft, ampoule making domains, to enhances burning efficiency. 2, Ozone generation: as a part of Ozone generation system, to provide oxygen supply. 3, Waste water disposal: oxidization of waste content. 4, Aquaculture: oxygen enriched water improves life of fishes. 5, Fermentation: better atmosphere for fermentation. 6, Paper and pulp: pulp bleaching.
