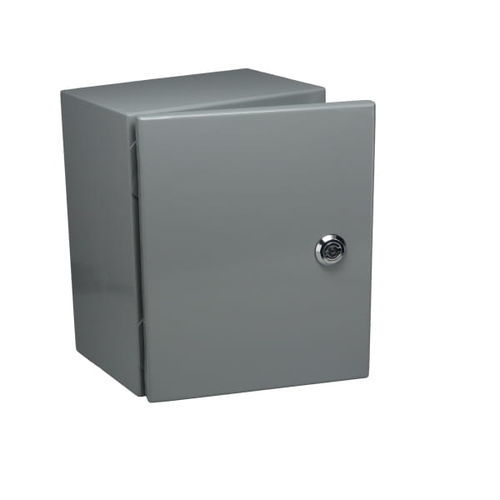

Wall-mount enclosure SNB-3730
panelrectangularzinc

wall-mount enclosure
wall-mount enclosure
wall-mount enclosure
Add to favorites
Compare this product


Characteristics

Construction
wall-mount, panel
Configuration
rectangular
Material
stainless steel, zinc
Protection level
waterproof, UL, NEMA, NEMA 4, NEMA 4X, NEMA 12, IP65, IP66
Width

6.3 in, 7.9 in

Height

8.3 in, 9.8 in

Depth

5.3 in, 5.9 in

Description

Continuous seam welded 16 gauge steel Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment Bonding studs for grounding are provided on base and door Internal panel and hardware included UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings Easily machined and modified to your particular requirements Finish: Smooth Gray powder coat, Internal Panel – Clear Zinc plate External Size L x W x D: Internal Size L x W x D: Weight: 7 lbs Color: Gray Powder Coat RoHS Certified: Always Compliant NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP Rating: 66 Cover Style: Opaque, Hinged Cover

VIDEO
