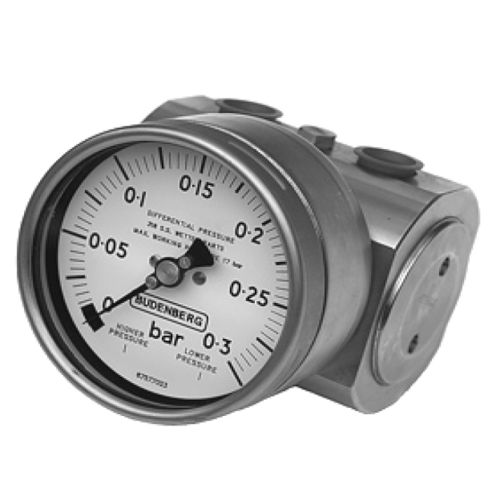

dial pressure gauge / bellows / differential / process
M24-4

{{requestButtons}}

Characteristics

  • Display:

    dial

  • Technology:

    bellows, differential

  • Applications:

    process

  • Other characteristics:

    stainless steel

  • Pressure:

    Max.: 70 bar (1,015.26 psi)

    Min.: 0 bar (0 psi)

Description

The M24 range of Differential Pressure Gauges have been designed for applications which require the measurement of low differential pressures whilst accommodating very high static pressures.

Designed around a balanced bellows system, which converts the differential pressure into a rotary movement by way of a torsion tube assembly and mechanical linkages. The entire assembly is liquid filled, producing a hydraulic self lubricating measurement system which allows for full line pressure to be applied to either side of the unit without damage to the device.
