GPS receiver GNSS 3000

GLONASSsatellitetime-frequency

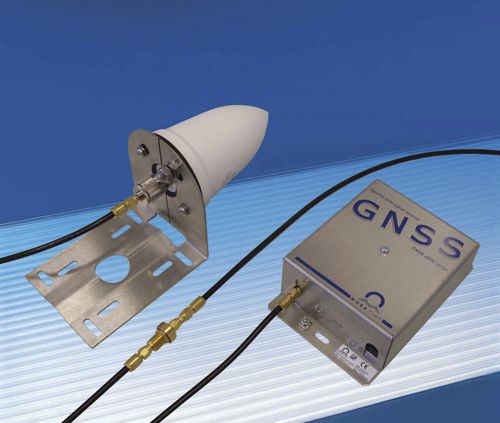

GNSS 3000 The GNSS 3000 is a time signal receiver intended for receiving time signals from navigation satellites. It can receive and process GLONASS and GPS signals. With this high precise time source as reference, the GNSS 3000 is designed to be a synchronization source for master clocks and time servers. Description Main function: The GNSS 3000 is designed to be a synchronization source for master clocks and time servers Time signals inputs: GLONASS and GPS signals Time signals outputs: DCF current loop Serial RS422 telegrams: NMEA (GGA, ZDA) PPS pulses (1 pulse per second) Time signal accuracy: Better +/- 5 µs Power supply: 12 – 60 VDC / < 3 W Cable: Antenna to receiver box: coaxial cable Receiver box to master clock: up to 200m standard signal cable possible Features: 32 channel satellite tracking, min. 3 satellites required
