LED display / numeric / giant / custom
DSO

Add to MyDirectIndustry favorites
Compare this product
LED display / numeric / giant / custom LED display / numeric / giant / custom - DSO
{{requestButtons}}

Characteristics

  • Type:

    LED, numeric

  • Features:

    giant, custom, 7-segment

  • Other characteristics:

    RS485, RS-232, adjustable brightness, Modbus RTU, Ethernet, outdoor, IP54

  • Applications:

    control, for photovoltaic installations, remote control

Description

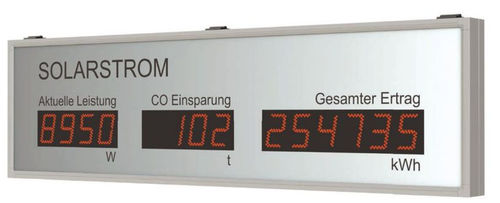

Special LED display for the visualization of the performance data of a photovoltaic system.
Control of the display via S0 interface or RS 232, RS 485 or Ethernet protocol.
Various communication protocols are supported: HVG, Modbus RTU, Modbus TCP, HTTP JSON ...
Compatible with data loggers such as Sunny WebBox, Solar Log, Fronius Datamanager ...
The time and configuration parameters are easily and simply set with an infrared remote control.

High luminosity of the numeric display and automatic brightness control - depending on the light conditions - by built-in sensor.
One-sided design, high versatility and flexibility in ordering through a modular design concept.

Custom design of the display surface by e.g. Company templates and corresponding foil lamination.

Power supply with 100-200 VAC, 50/60 Hz. DC connection available on request.

Housing construction and LED luminaires for outdoor installation and operation.
The 7-segment display consists of bright SMD LEDs that provide good readability even in difficult viewing angles or even direct sunlight.
The digit heights are available with 57, 100 or 180 mm, which corresponds to a reading distance of 25, 40 or 70 m.
Front glass of dark tinted mineral glass with anti-reflective coating, so that reflections are avoided and a good legibility exists.
Robust housing construction made of powder-coated extruded aluminum profiles. Standard in light gray (RAL 7040), other RAL colors available at extra cost.
Protection class IP 54 for outdoor applications.
