CNC turning machine BNC-1600
2-axisA2-5high-speed

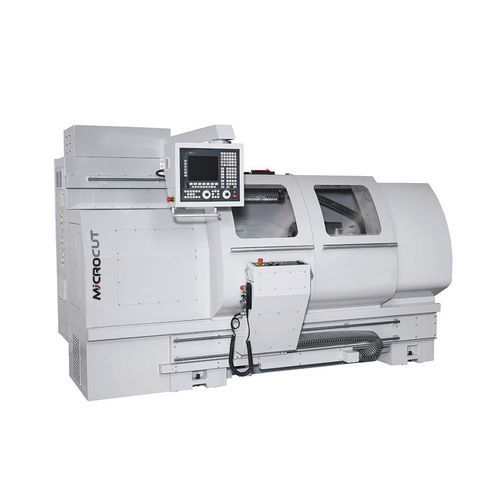

CNC turning machine - BNC-1600 - Buffalo Machinery Co. Ltd. - 2-axis / A2-5 / high-speed
CNC turning machine - BNC-1600 - Buffalo Machinery Co. Ltd. - 2-axis / A2-5 / high-speed
CNC turning machine - BNC-1600 - Buffalo Machinery Co. Ltd. - 2-axis / A2-5 / high-speed - image - 2
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-5
Performance
high-speed, high-rigidity
Diameter

425 mm
(16.73 in)

Spindle speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 5,000 rpm
(31,415.927 rad.min-1)

Maximum cutting length

1,000 mm, 1,500 mm
(39 in, 59 in)

Axe X

260 mm
(10 in)

Axe Z

1,180 mm, 1,680 mm
(46 in, 66 in)

Weight

2,400 kg, 2,850 kg
(5,291 lb, 6,283 lb)

Description

Featuring a box way construction and high speed spindle, Microcut’s CNC flat-bed lathe, BNC-1600 series is designed for high speed cutting, high rigidity and great capability for turning medium size work pieces. Standard accessories A2-5 Ø46mm spindle bore Tailstock Quick change tool post (QCT-55) Heat exchanger Optional accessories Ø52mm spindle bore 6"/8" Manual 3-jaw chuck 6"/8" Hyd. 3-jaw chuck 8" Manual 4-jaw chuck Steady rest 20-200mm Follow rest 20-200mm Hyd. tailstock 8-station hydraulic turret, regular type 8-station VDI-30 turret Chip conveyor Bar feeder Quick change tool post (QCT-66) Electric 4 way tool post 8 -station tool holder
