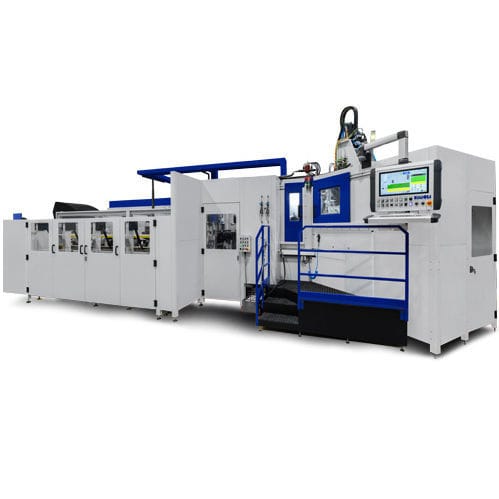

Rotary transfer machine TRANS-SPHERE

CNCmulti-positionautomated loading/unloading

Product overview
Vertical-axis transfer machine for the production of balls for ball valves in various materials, including lead-free brass and stainless steel. Option to feed and cut bars directly from a bundle increases system efficiency.

Key features

• Turning and diamond cutting station integrated into the frame but vibration-decoupled to minimise transmission
• Capability to process lead-free brass and stainless steel
• Optional bar feeding: bar loaded and cut directly in the machine from a bundle to improve throughput

Available operations

• Drilling
• Milling
• Broaching
• Off-center machining

Examples of parts / cycle times

• Cycle time 12 sec — Cube/Dia. 150mm
• Cycle time 20 sec — Cube/Dia. 150mm
• Cycle time 23 sec — Cube/Dia. 24mm
• Cycle time 8 sec — Cube/Dia. 24mm
• Cycle time 15 sec — Cube/Dia. 160mm
• Cycle time 12 sec — Cube/Dia. 160mm
• Cycle time 4.9 sec — Cube/Dia. 180mm

Multimedia
Includes product photo gallery and an embedded demonstration video of the TRANS-SPHERE machine.

Technical specifications

• Model: TRANS-SPHERE
• Machine type: Vertical-axis transfer / Multi-station mill and turn machine
• Materials processed: Lead-free brass, stainless steel and other materials suitable for ball valves
• Integrated stations: Turning and diamond cutting station integrated into frame but vibration-decoupled
• Feeding: Option to load and cut bars directly in the machine (from bundle of bars)
• Supported operations: Drilling, Milling, Broaching, Off-center machining
• Example cycle times: as low as 4.9 sec depending on part geometry and setup
