Profile drive unit

Overview

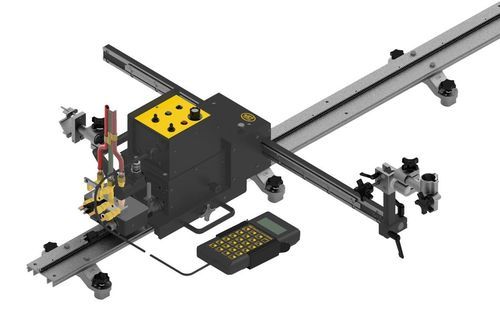

The Modular Drive System is a configurable machine platform for programmable shape cutting, straight-line cutting/welding, stitch welding, programmable stitch welding, arc gouging, linear weaving, and pendulum weaving. The system is built around a Master Drive Unit that accepts interchangeable control modules to adapt the machine for specific cutting or welding tasks.

Custom Cutting and Welding System Benefits

• High torque, low inertia motor
• Dedicated fail-safe brake
• Motor overload protection
• Closed-loop speed control
• Closed-loop position control
• Made in USA

Master Drive Unit Specifications
Specification — Details
Travel Speed Range — 2–120 in/min (51–3048 mm/min)
Vertical Load Capacity — 60 lbs (27 kg)
Horizontal Load Capacity — 100 lbs (45 kg)
Drive System — High torque, low inertia motor
Speed Control — Closed-loop system for precise, repeatable operation
Position Control — Closed-loop control to prevent drift and maintain accuracy
Brake System — Dedicated fail-safe brake with enhanced stopping power
Overload Protection — Automatic shutdown with brake engagement under excessive load
Power & Control Components — Integrated motor, power supply, and speed control board
Positioning System — Manual clutch for rapid carriage repositioning along track

Standard Features

• High torque, low inertia motor ensures smooth starts and precise stopping control
• Closed-loop speed control maintains consistent travel speeds for repeatable results
• Closed-loop position control prevents unwanted drift
• Dedicated fail-safe brake delivers superior stopping and holding power
• Motor overload protection automatically stops operation and engages the brake under excessive load
• Built-in clutch system allows fast manual positioning of the carriage
• Integrated control architecture supports accurate parameter adjustments for industrial applications

Master Drive Unit Description
The Master Drive Unit houses the motor, speed control board, power supply, and clutch for rapid manual carriage positioning. It operates at 2–120 in/min (51–3048 mm/min) with vertical load capacity of 60 lbs (27 kg) and horizontal load capacity of 100 lbs (45 kg). The unit features closed-loop speed and position control, a dedicated fail-safe brake with enhanced stopping and holding power, and motor overload protection which shuts down the motor and engages the brake under excessive load.

Accessories

• Remote Control Cable — MDS-1060-10 (10 ft / 3 m), MDS-1060-25 (25 ft / 7.6 m)
• Weld Contact Cable — MDS-1085 (10′ / 3.05 m), MDS-1085-25 (25′ / 7.62 m), MDS-1085-50 (50′ / 15.24 m)
• Automatic Height Control System — CAS-2050 (for WPD-1100 Linear Weaver), CAS-2060 (for WPD-2100 Pendulum Weaver)
• Extended Mounting Plate — MDS-1045
• Quick Action Manifold — MDS-3025 (2-hose), MDS-9898 (3-hose)
• Hose Assemblies — CIR-1010-3 (2-hose), MUG-1119-32 (3-hose)
• Universal Limit Kit — MDS-1055 (for rigid rail applications), FMD-1045 (for Hi-Flex rail applications)
• Handle with Cable Anchor — MPD-1035

Racking Groups

• Machined Rack Cutting Group — MDS-1050
• Machined Rack Welding Group — MDS-1040

Control Modules

• Programmable Shape Module (MDS-1165) — Provides 2-axis, encoder-controlled, all-position custom shape motion; shapes and patterns built by segments. 2-axis motion provided by the Master Drive and the Linear Weaver with 40" crossarm.
• Straight Module (MDS-1002) — Direction and speed control for continuous cutting or welding applications.
• Stitch Module (MDS-1003) — Direction and speed control for continuous travel or Stitch Mode with adjustments for travel time, rapid time, and puddle build/crater fill times.
• Programmable Stitch Module (MDS-1004) — Provides programmable stitch controls for welding or cutting; program stitch by distance, automatic stop/return, independent timers for puddle buildup, with parameters set/displayed on a graphic screen for repeatable results.
• Arc Gouger Straight Module (AGS-1002) — Direction and speed control for arc gouging systems; interfaces to provide automatic travel when the arc is established.

Weaver Control Modules and Weaver Units

• Weaver Control Module (MDS-1005 / MDS-1005-DIAL) — Operates Pendulum or Linear Weaver and Master Drive Unit. Features include digital readout and control for longitudinal travel speed; Forward/Stop/Reverse switch; amplitude knob for weave width from 1/8"–2" (3–50 mm); weave speed up to 100 in/min (254 cm/min); left/right dwell controls; steering up to 2" (50 mm); weld contact and power On/Off. The MDS-1005-DIAL includes lockable numerical display dials for oscillator functions.
• Linear Weaver (WPD-1100) — Provides linear weave motion producing welds 1/8"–2" (3–50 mm) wide. Bolts to the front of the carriage; includes motor overload protection.
• Pendulum Weaver (WPD-2100) — Provides pendulum weaving motion useful for fillet welds in corner joints; bolts to the front of the carriage and uses a heavy-duty planetary gearbox for powerful output to the welding gun and attachments.

Features

• High torque, low inertia motor for precise starts and stops
• High-speed Linear/Pendulum Weaver with independent left/right dwell control
• High motor gearing to prevent cross-arm movement when powered off
• Closed-loop speed and position control for adjustable and repeatable welding parameters
• Quick clutch for rapid installation or replacement of weaver cross arm
• Gun-mounting group with adjustable racking for accurate gun positioning
• Contactor ON/OFF switch

Technical Specifications

• Travel Speed Range: 2–120 in/min (51–3048 mm/min)
• Vertical Load Capacity: 60 lbs (27 kg)
• Horizontal Load Capacity: 100 lbs (45 kg)
• Drive System: High torque, low inertia motor
• Speed Control: Closed-loop speed control for precise, repeatable operation
• Position Control: Closed-loop position control to prevent drift and maintain accuracy
• Brake System: Dedicated fail-safe brake with enhanced stopping power
• Overload Protection: Automatic shutdown with brake engagement under excessive load
• Power & Control Components: Integrated motor, power supply, and speed control board
• Positioning System: Manual clutch for rapid carriage repositioning along track
