Sublimation furnace SUB-2510-3D

pressfor hot stampingchamber

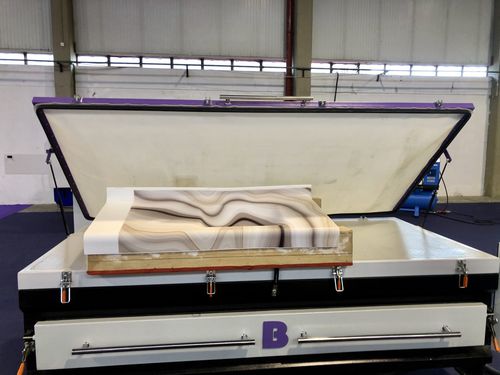

SUB-2510-3D For dye professional sublimation to produce large sizes TO SUBLIME literally means “going from a solid to a gaseous state, without going through the liquid state”. Thanks to this process we can print in the mass all materials able to withstand 175º C. The SUB-2510-3D is equipped with an oven and a vacuum pump producing homogeneous heat under controlled vacuum conditions. It is also the most economical of its professional range perfectly suited for the sign industry. The SUB-2510-3D is recommended for professional high production use. Production cycles range from 2 to 50 minutes Ventilated hot air ove Working surface: 2500 1000 mm Turbine ventilated double resistance Max temperature: 190ºC 40m3/h Becker maintenance-free vacuum pump Max pressure: 9 t/m2 Silicone sublimate pocket Manual Work Mode 50 mm rock wool furnace insulation Multiperforated Metal Vacuum Table High precision temperature control by k-type probe Digital clock and temperature control Analog vacuum time and pressure Silicone Membrane Metal Frame 4 industrial wheels with brakes Schneider brand electrical components Electrical power: 15 kW Conexión eléctrica 380v / 50-60Hz Emergency stop button on the console 2-year warranty
