Optical alignment system

optical devicemeasurementhigh-accuracy

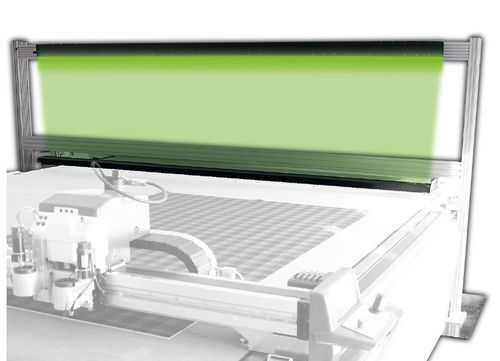

The Multi Array Scanner is a system for automated scanning and preparation of patterned materials for cutting. It recognises repeated patterns and aligns parts to the material to enable automated cutting workflows.

Key features

• Cutting of materials with stripes or squares
• Automatic recognition of pattern repeat and alignment of parts to the material
• Integration-ready output for automated cutting systems
• Automatic notch recognition for accurate placement

Workflow

• Scan the material surface
• Load parts to be cut
• Define the pattern repeat
• Start automatic mode
• Automatic notch recognition and alignment

Specifications / technical details

• Commercial name: Multi Array Scanner
• Brand: bullmer
• Primary application: Cutting of patterned materials (stripes, squares)
• Product page: https://www.bullmer.de/product/multi-array-scanner/
• Main image file: https://www.bullmer.de/wp-content/uploads/2019/11/scanner.png
