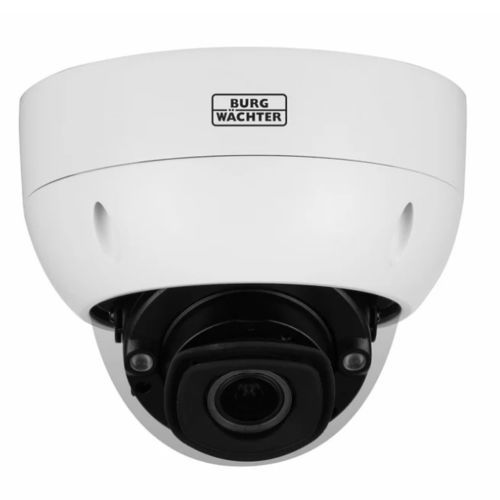

WDR camera BWNC-1242DDIAe

industrialIR12 Mpx

Packaging units 1 Edge recording NAS(NFS), Lokal auf dem PC, Micro SD Karte,FTP Imaging sensor progressive scan CMOS Light sensitivity [lux] 0.001 [email protected] (B/W,30IRE) Aperture Auto/manuell Video codec H.264, H.264+, H.265, H.265+, MJPEG(Substream) Viewing angle vertical 75°–33° Viewing angle (horizontal) 103°–44° Shutter Auto/Manual 1/3 s–1/100,000 s Aperture control automaticallymanual Max. Frame rate 25/30 Bit rates control VBRCBR Title overlay Ja Image mirroring vertical Yes Image mirroring horizontal Yes Zoom (optical / digital) 4x / 16x Lens type motorised zoom lens Lens Focal length 2.7 - 12mm D-O-R-I max. 208m - 83m - 41m - 20m D-O-R-I min. 85m - 34m - 17m - 8.5m I/O switching contacts 3/2 Alarm outputs 3 Eingang: 5mA/5VDC Alarm inputs 2 Ausgang: 1000mA/30VDC Audio inputs/outputs 1 / 1 Ethernet port RJ-45 Ethernet standards 10/100/1000 Base-T PoE Standard IEEE802.3at, ePoE Max. Power consumption (watts) <19,3 (24Vac) < 15.2 (12Vdc) ePoE / Long-Range PoE Ja Long Range PoE Ja Control interface RJ-45 Spotlight range [m] 60 LED wavelength 850 nm (IR) Headlight range 60 Day/night changeover Yes Noise reduction 2DNR3DNR Amplifier regulation Yes Private zones Ja, 4 Zonen Region of Interest (ROI) Yes Defog Yes Corridor mode Yes Backlight compensation WDRHLCBLCSSA Change of scene Yes Watermark Yes Safety functions HTTPS, SSL, IP/MAC Filter, Video Verschlüsselung, Rechteverwaltung, Funktion deaktivieren Sabotage alarm Yes Alarm management HTTP, FTP, SMTP, ONVIF ANR (Automatic Network Reproduction) Ja (für Aufnahmen) Supported browsers IE: IE9 und neuer, Chrome: Chrome 42 und neuer, Firefox: Firefox 48.0.2 und neuer Bewegungserkenunng Yes Motion detection Yes
