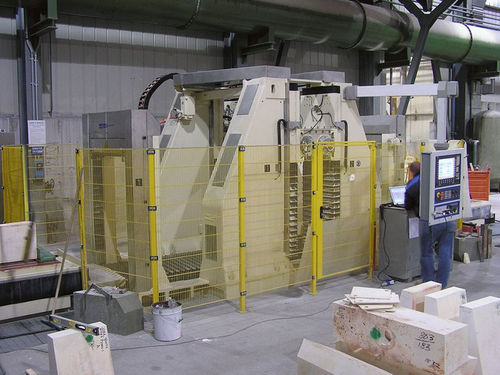

Precision grinding machine WSM 547 FF

calibrating

With the WSM 547, we offer a large-scale machine for the grinding and calibration of refractory materials with two diamond tool fitted roller drums. The machine is composed of 4 cast-iron supports, on which the roller drums are adjusted in the Z-axis via large-dimensioned ball screws. Both work tables are driven through the diamond roller drums via linear guides atop the cast-iron structure. The massive construction of the machine thereby enables the highest precision and parallelism. Specs Grinding pessure: - max. 100kN per tool Parallelism: - < = ± 0,05 mm over 2,000 mm workpiece length Angle accuracy: - < 0,1° Work tables: - max. 2
