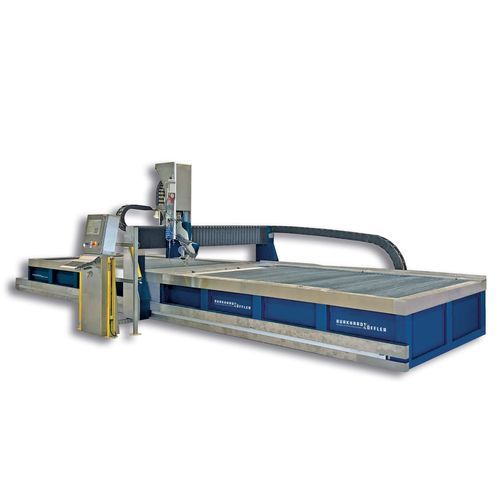

Water-jet cutting machine TWIN 2D/3D

3D water-jetfor plasticsfor stone

Overview
The POWERJET TWIN 2D/3D is an industrial waterjet cutting machine designed for serial production with continuous loading capability. Its twin catcher tanks enable loading during machining to maximise throughput and allow processing of long or multiple panels.

Materials and applications

• Suitable materials: ceramic, marble, granite, glass, plastics and engineered stone.
• Intended for industrial production lines, batch processing and integration into automated plants.

Precision and calibration

• Rotating and swivelling 3D cutting head enabling precise mitre and 3D cuts.
• Fully automatic sensors compensate for variations in material thickness during cutting.
• Electronic measurement and calibration system for the waterjet head with measuring accuracy of 0.05 mm per machine level.
• Mechanical deviations can be measured and compensated via dedicated software; measurements performed at commissioning and during scheduled maintenance to ensure consistent accuracy.

Automation and production integration

• Machine concept allows loading during machining with two collecting/catcher basins to increase uptime.
• Optional features: fully automated table exchange, sludge extraction for catcher tanks, and 5-axis interpolating 3D cutting head for complex geometries.
• Designed for integration into automated production processes and continuous operation.

Technical specifications

• Work area: 2 × 4000 x 2200 mm
• High-pressure pump: 30–100 kW
• Working pressure: 4100 bar
• Feed rate (X, Y): 50 m/min
