Efficient:
minimized operating costs
Reliable:
leak-tight, robust construction made of GGG40 material, reliable under varying operating conditions, solid lobe design for high particle tolerance
High Performance:
high pumping speed due to excellent volumetric efficiency
Easy Servicing:
minimal maintenance
Compact Design

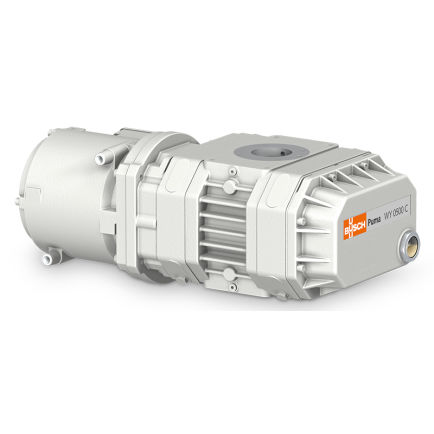

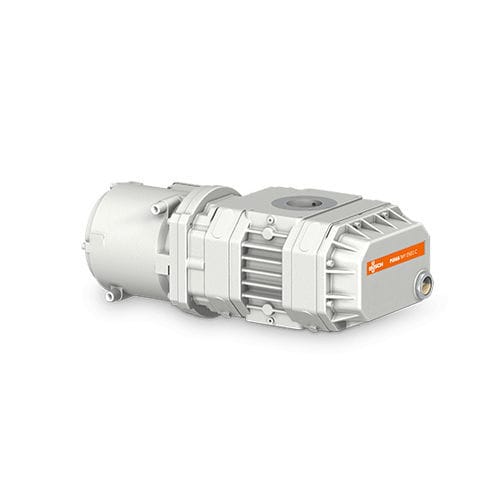

Due to their high pumping speed and ultimate pressure, Puma WY vacuum boosters increase the performance of vacuum pumps. Available in various sizes, Puma WY vacuum boosters can be designed to perfectly suit all medium and high vacuum applications in which the performance of the backing pump needs to be significantly increased or optimally adapted to the process. The Puma WY 0500 – 1250 C are the three smaller vacuum boosters in this series.
Puma WY are the perfect vacuum boosters for all types of backing pumps. When using a combination of backing pump and vacuum booster, the pumping speed and ultimate pressure of a vacuum system can be increased by up to a factor of 10. As a result, these combinations can generate a suction performance which would otherwise only be possible with a large number of backing pumps.
Puma WY vacuum boosters are perfectly suited to pump aggressive or toxic gases. The directly flange-mounted water-cooled motor enables an absolute leak-tightness to the atmosphere.
Puma WY vacuum boosters can be controlled using a pressure switch that activates the vacuum booster of the backing pump if it has achieved the optimum pressure. Alternatively, the Puma WY vacuum boosters are also available in versions that are controlled by frequency converters.
