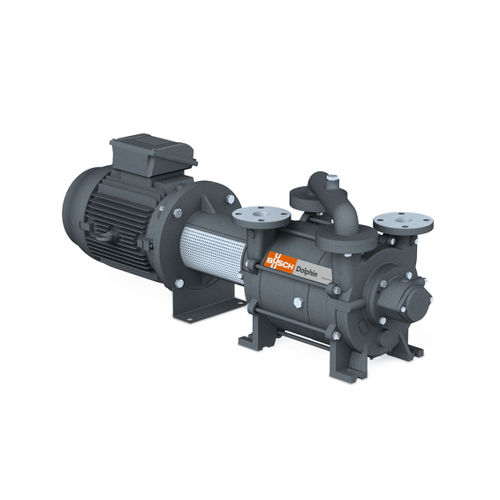

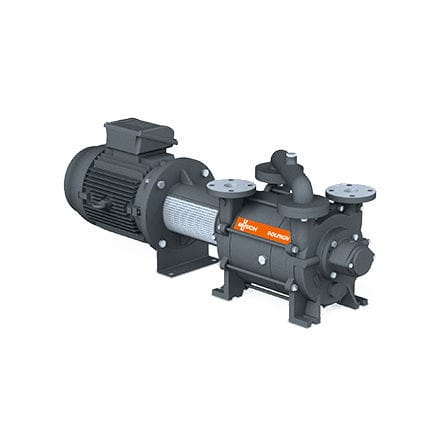

Liquid ring vacuum pump Dolphin LB 0265 A
drytwo-stagecompressor

liquid ring vacuum pump
liquid ring vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
liquid ring
Lubrication
dry
Number of stages
two-stage
Other characteristics
compressor
Ultimate vacuum

33 mbar
(0.48 psi)

Flow rate

325 m³/h
(11,477.27 ft³/h)

Description

The Dolphin LB 0265 - 0425 A belong to the Busch product family of proven Dolphin Liquid Ring vacuum pumps. You will find more information on advantages, technology, accessories and spare parts, applications as well as a complete product overview on our Dolphin LB series type page. Technical Specifications Dolphin LB is a series of two-stage liquid ring vacuum pumps. An eccentrically mounted impeller rotates in a housing partially filled with operating fluid. The impeller blades dip into the fluid, and the centrifugal force exerted by their rotation forms a so-called liquid ring within the housing. The pumped medium is transported in the spaces between the blades and the liquid ring. The eccentric rotation of the impeller alters the volume of these spaces, causing gas to be drawn in, compressed and expelled. Operation as a compressor is possible up to 2.0 bar(g). Accessories and spare Parts Modular pumpsets, configured for partial or total recirculation of the operating fluid Liquid separator Cavitation protection Heat exchanger Gas ejector Wide selection of motors Non-return valves Vacuum relief valves
