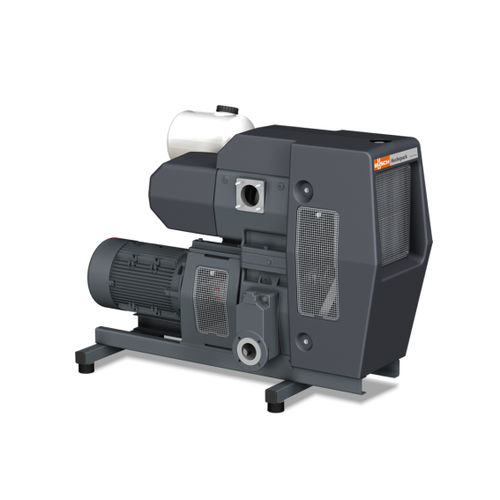

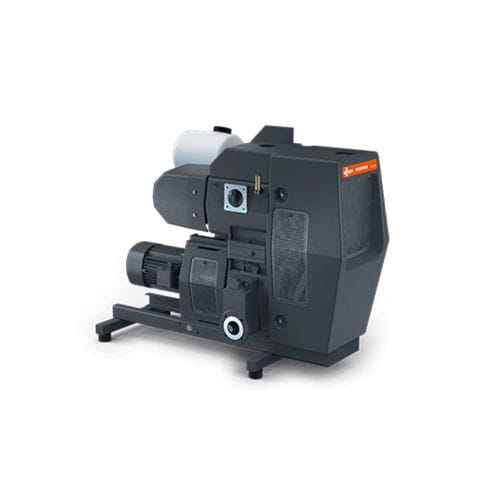

Rotary vane vacuum pump Huckepack HO 0437 F
centrifugaloil-lubricatedtwo-stage

Rotary vane vacuum pump - Huckepack HO 0437 F - Busch Vacuum Solutions - centrifugal / oil-lubricated / two-stage
Rotary vane vacuum pump - Huckepack HO 0437 F - Busch Vacuum Solutions - centrifugal / oil-lubricated / two-stage
Add to favorites
Compare this product

Characteristics

Technology
rotary vane, centrifugal
Lubrication
oil-lubricated
Number of stages
two-stage
Applications
for the chemical industry, for pharmaceutical applications
Ultimate vacuum

0.5 mbar
(0.01 psi)

Flow rate

400 m³/h, 480 m³/h
(14,125.87 ft³/h, 16,951.04 ft³/h)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Length

1,640 mm
(65 in)

Width

950 mm
(37.4 in)

Height

1,240 mm
(48.82 in)

Noise level

73 dB

Weight

930 kg
(2,050.3 lb)

Description

The Unbreakable Vacuum Solution for the Toughest of Applications Robust Reliable operation, proven performance, high vapor and particle tolerance, resistant to sticky and very aggressive substances, fresh oil lubrication for outstanding running qualities, highly resistant carbon fiber composite vanes Flexible Specially designed for particularly complex processes, for example in the chemical, pharmaceutical and special food packaging industries, easy adaption to individual customer requirements and processes, ATEX-version available Easy servicing Minimal maintenance, no special tools necessary, modular design for rapid exchange of stages
