Description

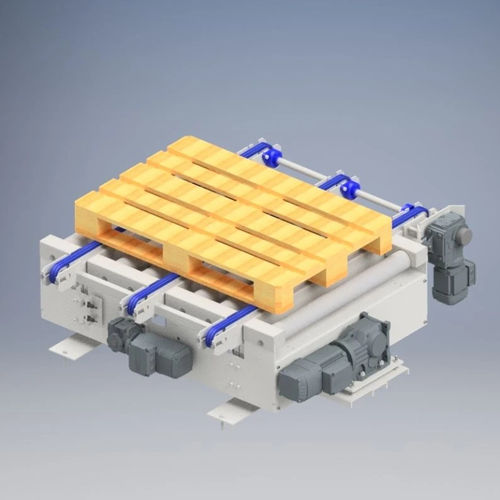

Pallet transfer conveyor, without side covering. This turntable is suitable for Europe pallets: 1200*800mm & 1200*1000mm. Allows 90° transfer of products from one line to another Chassis : • Metal frame in folded sheet metal thickness : 40/10th • Supporting feet adjustable in height by jack screw Rollers : • Zinc plated steel Ø 89, thickness 3mm, axis Ø 20mm, pitch 151 mm • Double sprockets with 15 teeth for chain at 15,8mm pitch • Height on rollers 500 mm +/- 50 mm Chains : • 3 chains Drive unit : • Fixed speed gear motor placed under the unit • Rotation speed: 90°/4s Electrical : • Without electrical control equipment, except for the geared motor Load capacity : • Per pallet : 1200 kg
