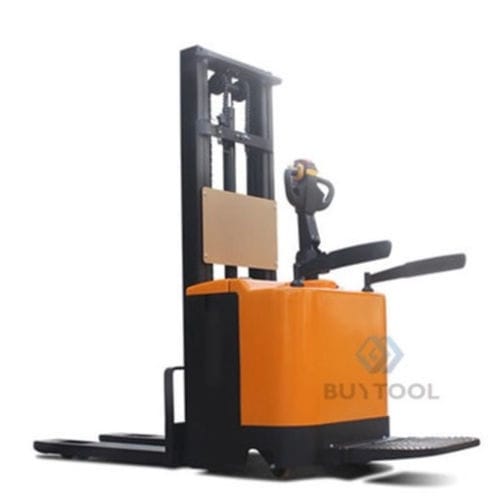

Pallet stacker CDD15-30

for lift tablesvertical

Capacity: - 2000kg - Material: - Q235 Operation Type: - Stand - Load Center: - 500mm Lifting Height: - 5000mm - Max. Working Height: - 4000mm Drive Power Unit: - 5kw Lift Power: - 6.3kw Highlight: - load capacity 1t electric pallet stacker, lifting height 5000mm electric pallet stacker, load capacity 2t electric pallet lifter Product Description Electric Pallet Stacker with Load Capacity of 1-2T Lifting Height 5000mm Description: Because of CURTIS electronic control, so we have multiple automatic protection system controllers. Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running. ?High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling. Alternating current driving, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output. We consider emergency power switch as a standard configuration. Just press the emergency stop button to cut off all the power in case of an emergency, the car can stop immediately. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable. The door frame design is wide field of vision, dedicated channel steel, high strength.
