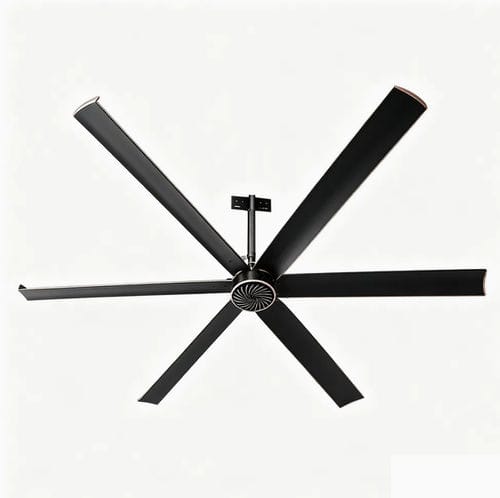

Propeller fan RLBF03-4.9-5

ceiling-mountedfor air circulationventilation

Overview
Industrial HVLS (High Volume Low Speed) ceiling fan with PMSM permanent magnet synchronous motor delivering low-speed, high-volume airflow for large-space ventilation, cooling and dehumidification. Designed for workshops, warehouses, farms and gymnasiums. Multiple built-in safety measures and VFD speed control with wireless remote.

Features

• PMSM permanent magnet synchronous motor: efficient, low-noise, low-maintenance
• 6063 aluminum blades (5 or 6 blades option) provide wide-area, soft airflow
• Comprehensive safety: anti-fall steel cable system, blade anti-drop structure, overload protection
• VFD (frequency conversion) drive with wireless remote for stepless speed adjustment
• Knock-down split packaging for reduced sea freight and easy on-site assembly
• Suitable for warehouses, factories, breeding farms, gymnasiums and high-ceiling commercial spaces

Product Parameters
model | Motor type | Motor power (kW) | Blade material | Number of fan blades
RLBF02-7.3-5 | permanent magnet motor | 1.5 | 6063aluminum | 5
RLBF02-7.3-6 | permanent magnet motor | 1.5 | 6063aluminum | 6
RLBF02-6.1-5 | permanent magnet motor | 1.5 | 6063aluminum | 5
RLBF02-6.1-6 | permanent magnet motor | 1.5 | 6063aluminum | 6
RLBF03-4.9-5 | permanent magnet motor | 0.75 | 6063aluminum | 5
RLBF03-4.9-6 | permanent magnet motor | 0.75 | 6063aluminum | 6
RLBF07-4.2-5 | permanent magnet motor | 0.5 | 6063aluminum | 5
RLBF07-4.2-6 | permanent magnet motor | 0.5 | 6063aluminum | 6

Basic Info

• Model NO.: RLBF03-4.9-5 (example)
• Type: Cooling Fan / Industrial HVLS ceiling fan
• Electric Current Type: DC
• Mounting: Ceiling-mounted
• Certification: CE
• Keywords: Energy Saving Ventilation HVLS Fan, Industrial HVLS Fan
• Application: Warehouse; Factory; 4S Shop; Farm; Gymnasium
• Motor: Permanent Magnet (PMSM)
• Blade material: 6063 aluminum, powder-sprayed finish
• Number of blades: 5 or 6
• Noise Level: 30.0–34.0 dB
• Weight (unit): approx. 40 kg
• Transport Package: 1 PC / Wooden Case
• Specification: Customizable
• Trademark: Buytool
• Origin: Made in China
• HS Code: 8427900000
• Production Capacity: 1000 PCS / Month

Packaging & Delivery

• Package Size: 152.00 cm × 60.00 cm × 50.00 cm
• Package Gross Weight: 50.0 kg
• Packaging: Knock-down / split packaging for sea transport and easy on-site assembly

Product Description
HVLS fan produces a wide, gentle airflow to improve air circulation, reduce temperature stratification and assist dehumidification in large indoor spaces. Motorized by a PMSM permanent magnet synchronous motor for high efficiency and low noise. Vector VFD drive provides stable control and stepless speed adjustment via wireless remote. Safety features include anti-fall steel cable, blade anti-drop structure and overload protection. Blades are surface-treated (anti-corrosion and oxidation) and powder-coated at high temperature (film thickness ≈ 70 ± 5 µm); blade color and specifications can be customized to project requirements.

Technical Specifications

• Series: RLBF
• Motor type: PMSM permanent magnet synchronous (brushless)
• Motor power: 0.5–1.5 kW (model dependent)
• Blade material: 6063 aluminum alloy
• Blade options: 5 or 6 blades
• Noise level: 30.0–34.0 dB
• Unit weight: ~40 kg
• Warranty: 1 year (standard)
• Lead time: typically 30 days; 45 days for >5 mixed models per container; 20 days for single-item container
• Payment terms: L/C, T/T
• Port of loading: Shanghai, China (example)
• MOQ: 1 piece
