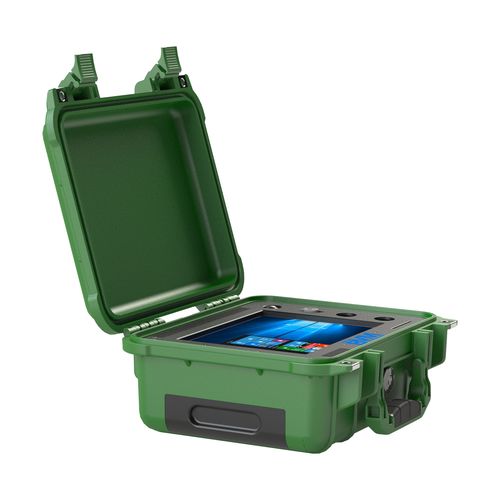

Transport case BVM-Peli-0100

for PCmilitaryfor laptop computers

BVM Portable Pelicase PC – Coastal Science / Military Diving / Mining Counter Measures / ROV : Non-electric Mine Neutralisation – Integration of suitable electronics into a Pelicase 1400 enclosure. Design Requirements Integration of clients iMX7 COM/SOM module with custom carrier PCB board Integration of Lithium-Ion rechargeable battery to provide up to 8 hours of continuous operation. Specific IP protection; IP67 when closed, IP66 when open & in operation Coastal Science / Military Diving / Mining Counter Measures / ROV : Non-electric Mine Neutralisation The portable, ruggedised system is deployed for the wireless initiation for the neutralization of unexploded sea mines from sea vessels. The solution is additionally deployed to address a of variety underwater technologies in harsh marine environments – inclusive of environmental surveys, ‘aquaculture’, sensor tracking and ocean current behaviors. Solution Integration of suitable electronics into a Pelicase 1400 enclosure HMI 7″ TFT LCD Screen, 800×480, 1000nits, 4-wire Res Touch(RoHS) Configured with LVDS and backlight cabling PC Engine iMX7ULP uCOM module with custom carrier board. External & Direct Interfaces 2 x Ethernet connectors 1 x RS232/RS485 1 x 12/24v DC power input connector 1 x USB for data offload 1 x RS232 DB9 Mechanical Design TFT display screen & top I/O fitted to custom aluminium bezel Enclosed uCOM module & carrier board for provision of EMC protection Ruggedised design throughout Overall weight – 10.9 kgs
