Electric forklift ECB series
ride-oncounterbalancedheavy-duty

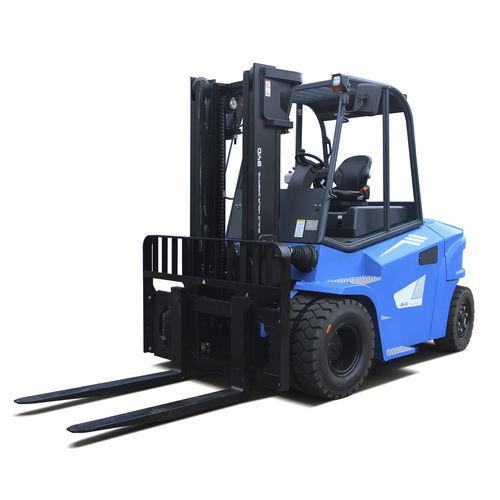

Electric forklift - ECB series - BYD Europe B.V. - ride-on / counterbalanced / heavy-duty
Electric forklift - ECB series - BYD Europe B.V. - ride-on / counterbalanced / heavy-duty
Electric forklift - ECB series - BYD Europe B.V. - ride-on / counterbalanced / heavy-duty - image - 2
Electric forklift - ECB series - BYD Europe B.V. - ride-on / counterbalanced / heavy-duty - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Other characteristics
counterbalanced, heavy-duty
Carrying capacity

7,000 kg, 8,000 kg
(15,432.4 lb, 17,637 lb)

Lifting height

3,300 mm
(129.92 in)

Overall width

2,076 mm
(81.7 in)

Overall length

4,770 mm
(187.8 in)

Load center distance

600 mm
(23.6 in)

Axle loading with maximum load front

16,740 kg, 18,350 kg
(36,905.4 lb, 40,454.8 lb)

Axle loading with maximum load rear

2,760 kg, 2,950 kg
(6,084.8 lb, 6,503.6 lb)

Axle loading without load front

5,820 kg, 5,880 kg
(12,830.9 lb, 12,963.2 lb)

Axle loading without load rear

6,680 kg, 7,420 kg
(14,726.9 lb, 16,358.3 lb)

Track width front

1,541 mm
(60.7 in)

Track width rear

1,450 mm
(57.1 in)

Height of mast when lowered

2,770 mm
(109.1 in)

Free lift

Max.: 2,220 mm
(87.4 in)

Min.: 170 mm
(6.7 in)

Overall height with mast raised

Max.: 8,970 mm
(353.1 in)

Min.: 4,770 mm
(187.8 in)

Height to top of overhead guard

2,780 mm
(109.4 in)

Seat height

1,708 mm
(67.2 in)

Length to fork face

3,550 mm
(139.8 in)

Fork carriage width

1,800 mm
(70.9 in)

Ground clearance under mast with load

200 mm
(7.9 in)

Ground clearance at center of wheelbase with load

200 mm
(7.9 in)

Turning circle radius

3,260 mm
(128.3 in)

Travel speed

16 km/h, 17 km/h
(9.9 mph, 10.6 mph)

Lifting speed

350 mm/s, 400 mm/s

Lowering speed

400 mm/s, 500 mm/s

Rated drawbar pull

28 kN, 32 kN

Gradeability

15 %, 20 %

Maximum operating pressure

18 MPa

Noise level

80 dB

Description

The new heavy-duty BYD ECB 70/80 is BYD’s flagship high-capacity forklift that extends the capabilities already established by its 5-tonne model to unprecedented new levels for lithium-powered forklifts. In industry sectors traditionally dominated by polluting diesel trucks and impractical and unwieldy lead acid battery electric forklifts, BYD’s attractive new ECB70/80, with lifting capacities up to 8 tonnes, offers all of the performance of the models it supplants with none of the drawbacks. Compared to a diesel-powered forklift of similar capacity, the BYD ECB70/80 offers potentially huge savings thanks to its highly developed battery and charger technology. The BYD ECB70/80 is approximately €7-€8 per hour cheaper to operate than a diesel equivalent (according to data provided by competitors), meaning a typical business operating a high-capacity forklift for 2,000 hours can save up to €16,000 annually. The BYD ECB70/80 7/8 Ton Comfort three-wheel forklift truck has the same characteristics as the Basic model, in addition to: Multi-function armrest with fingertip control Seat with full suspension Mast with full free double lifting cylinders Curve speed adjustment to improve stability and reduce risk of overturning Brake assist when it detects that the operator is releasing the brake on a ramp or slope Limitation of the front tilt angle to reduce the risk of load drop When the load exceeds 10% of the set weight, the engine stops working for safety’s sake Multifunction TFT display with scrolling speed, remaining battery capacity, clock with working hours and accumulated hours, and three speed modes
