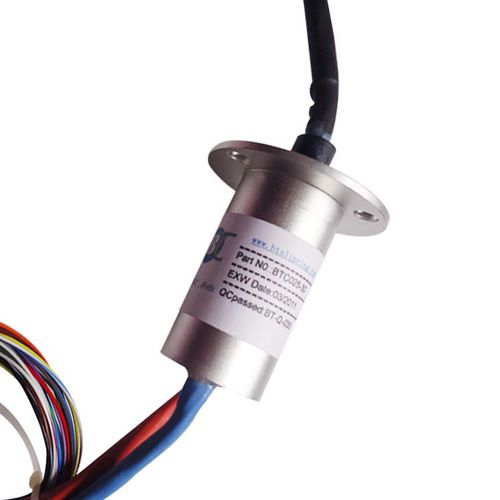

Capsule slip ring BTC025-30
industrialmedicalgold

capsule slip ring
capsule slip ring
Add to favorites
Compare this product


Characteristics

Construction
capsule
Applications
industrial, medical
Material
gold, silver, steel
Other characteristics
compact, IP54, flange, miniature, high-speed
Voltage

240 V

Primary current

2 A

Rotational speed

800 rpm
(5,027 rad.min-1)

Description

BTC025-30 Miniature Capsule Slip Ring TC025-30 Miniature Capsule Slip Ring(also called flange slip ring), outer diameter 25mm, length 87.5mm,The slip-ring is compact in size, and the shrapnel contacts are precious metals (gold to gold or silver to silver) each way multi-point contact, with low torque, low loss, low electrical noise and other characteristics. Mainly used for small and medium-sized equipment, such as: high-speed ball, uav, CCTV head, mechanical arm, medical and health equipment, rotating work platform, assembly line production, industrial control equipment and other fields, BTC025-30 Miniature Capsule Slip Ring(also called flange slip ring), outer diameter 25mm, length 87.5mm,The slip-ring is compact in size, and the shrapnel contacts are precious metals (gold to gold or silver to silver) each way multi-point contact, with low torque, low loss, low electrical noise and other characteristics. Mainly used for small and medium-sized equipment, such as: high-speed ball, uav, CCTV head, mechanical arm, medical and health equipment, rotating work platform, assembly line production, industrial control equipment and other fields, its main external flange installation, installation is very convenient. Product Details Working speed 500rpm (typically) Limited speed 800rpm Operating temperature -40℃ ~ +100℃ Contact material Gold to Gold Bearing Steel ball bearing IP Grade IP 54 Circuit 25-56 Current 2A or combined rings to be higher current Voltage ≥240V Dielectric strength 500V@50Hz between each circuit Insulation resistance 500MΩ@ 500VDC Electric noise ≤7mΩ Lead wire size 28AWG, UL ,color Teflon, silver or tin plated Lead wire length 200mm
