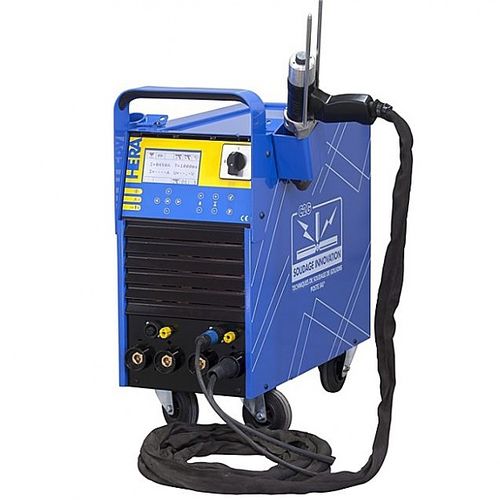

Arc welding generator HERA 2500

three-phasefor steelfor stainless steel

This modular generator uses the Inverter technique, which consists of a high frequency conversion and allows very rapid regulation, improving the reproducibility of welds: ARC FUSION FORGING, SIG ® and Arc Short Time processes. CHARACTERISTICS : Regulated and adjustable welding current from 0 to 2500 Amps. (inverter Running factor 15% (at 1200 A and 1 ms of arc time) or 6 studs / minute. Keyboard lexan. Pre-recorded settings, 80 programs, with 30 personal programs, 2 pistol outputs. Arc Time Delay Short Time: 0.007 to 0.1 s. Timing Arc Fusion Forging: 0.07 to 1 s. Welding of all types and markings of standardized studs. • Diameter 1 to 25 mm in Arc Fusion Forging with ceramic. • Diameter 1 to 10 mm in Arc Short Time. • Diameter of 1 to 12 mm in SIG® under neutral gas. Weldable materials: Structural steels, Stainless steel all grades, H-R steels, Titanium, Nickel, bases nickel, Copper, Aluminum, etc ... Uses standardized gases or gas mixtures according to the materials, Argon / CO². Power supply: 400 Volts three-phase, 50/60 Hz. 63 A - AM protection IP21. Dimensions: L = 600 X l = 265 X H = 660 with wheels Weight: 62.2 Kg
