220 mm (8.661 in)
Separates milled PCBs carefully and quickly
PCBs are separated carefully and quickly, off-cuts are removed precisely and smoothly. A two-part matrix enables the different blades to be assembled resp. exchanged easily.
Off-cuts are punched out with the help of a compressed air cylinder. The operating pressure can be set on the unit.

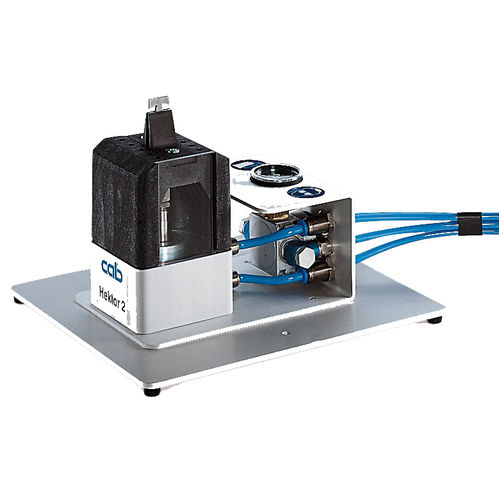

Safe operation with HEKTOR 2
PCBs are positioned with their milled groove over the blade onto the matrix. The off-cut is fed below the punch blade. A foot switch triggers the punching and the off-cut is collected in the bottom tool.
