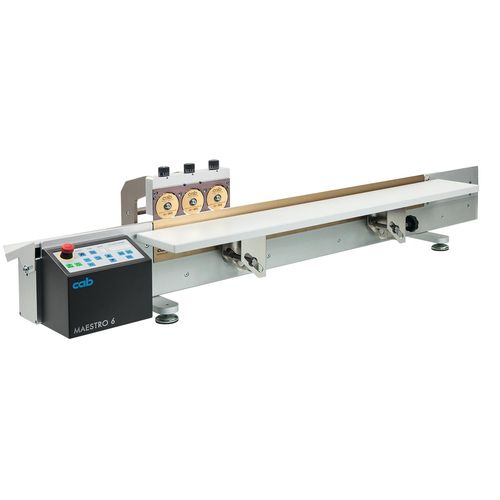

PCB separator MAESTRO 6

beltautomaticaluminium

Separation of milled PCBs up to a length of 1,500 mm with a minimum of stress on the components The MAESTRO 6 is the consequent further development of the proven cab PCB separators. Even very lengthy PCBs can be separated fast, economical and without stress. The carriage power unit is assembled behind the linear blade. This crucially simplifies the separation and removal of the PCBs. Dial gauge In order to separate without stress and to achieve a long service life, the circular and linear blades have to be guided along the entire separation. The dial gauge setting and regularly checking the parallelism is assembled to the carriage. MAESTRO 6/X03 Separation of FR4, CEM3 and aluminum PCBs up to lengths of 1,500 mm Simple and quick change of FR4/CEM3 blades to aluminum blades or the other way round Height of circular blades to the linear blade to be set individually MAESTRO 6/X01 Separation of FR4 and CEM3 PCBs up to lengths of 900 mm; further lengths on request MAESTRO 6/601.70 Separation of FR4 and CEM3 PCBs up to lengths of 600 mm and component heights of 70 mm; further lengths on request
