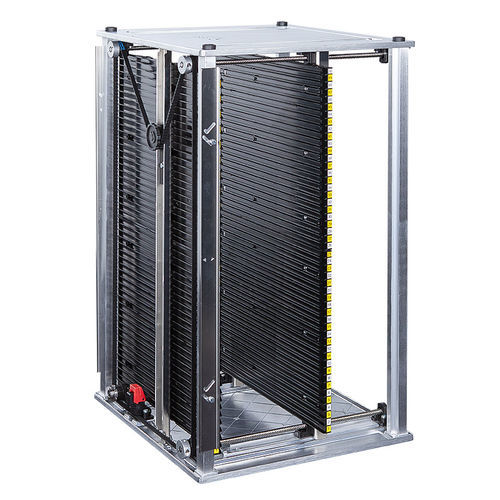

PCB magazine 6000 series

Automation requires precision Precision, stability and dimensional accuracy are key features when operating magazines in automated pick-and-place plants. Ball-bearing precision spindles keep side panels synchronous along the entire range of alignment. A rugged and torsion-resistant frame design enables long-term use in manufacture. Side panels are designed electrically conductive. Top covers and base plates are entirely closed to protect PCB. 2 Knobs for magazine stacking 3 Precision spindles for keeping side panels parallel 4 Transport lock A latch is provided on the front and back of a fixed side panel. It unlocks by vertical lifting. Inclination causes the latch to slide aside. Side panels Three designs are provided. Choice depends on the ambient temperature. Consecutive numbering from 1 to 50 along the guides simplifies PCB insertion.
