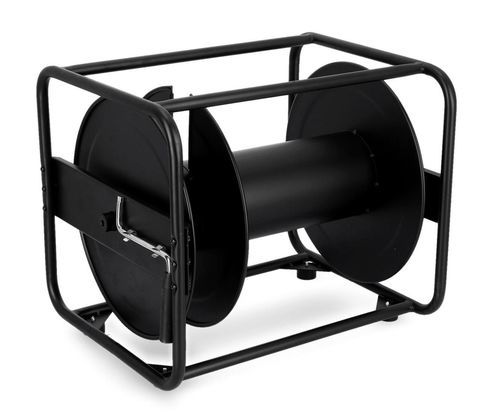

Cable reel EM230 series
hand crankfixedsteel

cable reel
cable reel
cable reel
Add to favorites
Compare this product


Characteristics

Type
cable
Drive mechanism
hand crank
Configuration
fixed
Other characteristics
steel
Hose/cable length

36 m, 80 m, 150 m, 230 m (118'01")

Description

Code EM230 / EM230R Space requirement : l540 x P440 x H465 mm Weight : 13.85kg (EM230) / 16.35kg (EM230R) Ø of flanges : 398mm Ø of the drum : 150mm Useful width : 350mm Plugs : - Wheels : Delivered with 4 casters Ø 100mm, of which 2 with locking mechanism (only for EM230R) Material : Epoxy finish steel frame and flanges Indicative capacity based on cable Ø : 230m (10mm) / 150m (15mm) / 80m (20mm) / 36m (30mm)
