Cable reel ERATX
electric cableretractablespring rewind

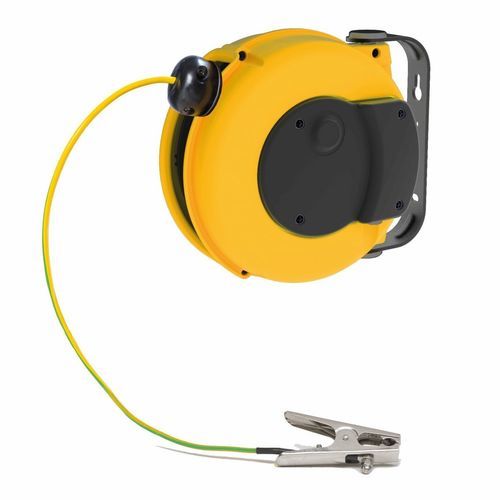

Cable reel - ERATX - CABLE EQUIPEMENTS - electric cable / retractable / spring rewind
Cable reel - ERATX - CABLE EQUIPEMENTS - electric cable / retractable / spring rewind
Cable reel - ERATX - CABLE EQUIPEMENTS - electric cable / retractable / spring rewind - image - 2
Cable reel - ERATX - CABLE EQUIPEMENTS - electric cable / retractable / spring rewind - image - 3
Add to favorites
Compare this product
Go to the CABLE EQUIPEMENTS website for more information

Characteristics

Type
cable, electric cable
Drive mechanism
retractable, spring rewind
Applications
electrical power supply
Certifications
ATEX, CE
Number of wire
1 wire
Other characteristics
explosion-proof
Hose/cable length

Min.: 5 m
(16'04" )

Max.: 20 m
(65'07" )

Diameter

Min.: 0 mm
(0 in)

Max.: 45 mm
(1.77 in)

Description

Overview
  • ATEX-certified retractable cable reel supplied with an ATEX-certified clamp for use in explosive gas and dust atmospheres.
  • Two main variants: CRXK (20 m cable 1x10 mm², code ERATX0110-20P-P8) and CR7K (10 m cable 1x10 mm², code ERATX0110-10P-P6). Input cable delivered: 5 m.


Delivered variants
  • CRXK: 20 m cable 1x10 mm²; clamp opening up to 45 mm; code ERATX0110-20P-P8.
  • CR7K: 10 m cable 1x10 mm²; clamp opening up to 45 mm; code ERATX0110-10P-P6.


Certifications and marking
  • Marking: CE94/9/CE II 2G / II 2D.
  • EC type-examination certificate (reel): BVS 10 ATEX E 84.
  • Clamp certificate example: BVS 19 ATEX E 028.


Technical specifications
  • Input cable delivered: 5 m.
  • CRXK delivered with: 20 m cable 1x10 mm².
  • CR7K delivered with: 10 m cable 1x10 mm².
  • Clamp opening: up to 45 mm.
  • ATEX marking (reel): Gas II 2G Ex h IIC T6 Gb; Dust II 2D Ex h IIIC T80° Db.
  • Clamp marking: Gas II 1G Ex ia IIB/IIC T6 Ga; Dust II 1D Ex ia IIIC T85°C Da.
  • Other compatible ranges: 7000, XF, PC; related reel families: PLT100, PLT500, PLT800.


Installation and handling
  • Product is a component of an overall electrical installation; installation and final assembly must be performed by a qualified professional to ensure compliance.
  • Spring retraction provides automatic cable recovery; the cable must be guided and accompanied during extension and rewinding to avoid damage.


Ordering and notes
  • Manufacturer product codes referenced: ERATX0104-07P-P1 (PLT100, 7 m, 1x4), ERATX0110-10P-P5 (PLT500, 10 m, 1x10), ERATX0110-20P-P8 (PLT800, 20 m, 1x10).
  • Additional technical data, certificates and customised configurations available on request.
