Accelerator pedal P05
brakepotentiometermechanical

accelerator pedal
accelerator pedal
Add to favorites
Compare this product


Characteristics

Function
accelerator, brake
Technology
mechanical, potentiometer
Type
single pedal
Other characteristics
rugged, compact, IP65

Description

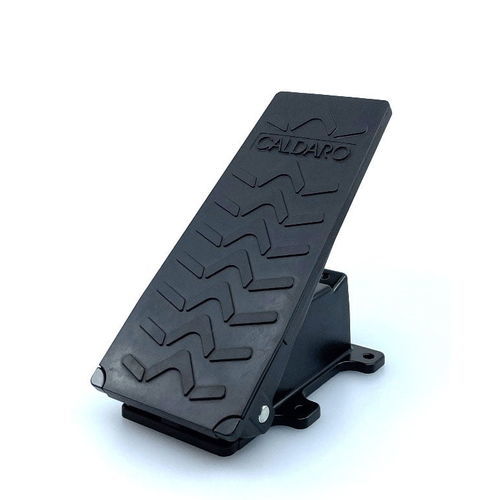

Industrial Foot Pedal P05 Product characteristics Accelerating and braking with a compact, robust foot pedal. Caldaro has launched a new generation of foot pedals for a broad range of applications. The P05 pedal can be used both indoors and outdoors, in hot or cold conditions and for countless applications. The P05 has a completely new mechanical design with all the electronics integrated in the pedal housing, making it extremely robust and resistant to tough environments. It is also cost-effective, adaptable and compliant with most market requirements including 100 V/m (EMC), +/8kV (terminal) and +/15kV (airborne) ESD discharge, protection class IP65 against moisture and dust. Highly adaptable The pedal is of OEM quality and has got a long lifespan, lasting for over ten million operations. It is available with Hall output voltage or a potentiometer (for analogue output signals),and up to two (optional) micro switches. Cable type and length can be customized. The customer can choose to have the cable glands leading out from the back of the pedal (standard) or through the bottom (special). The output signals can be customized, for example dual crossed 10–90% and 90–10% (0.5–4.5V and 4.5–0.5V) combined with double micro switches, one activated when the pedal disengages from idle position (IVS), and the other activated on kick down. The pedal can be supplemented with a mechanism that provides added resistance before the kick down switch is activated.

Catalogs

Pedal P05
Pedal P05
2 Pages
