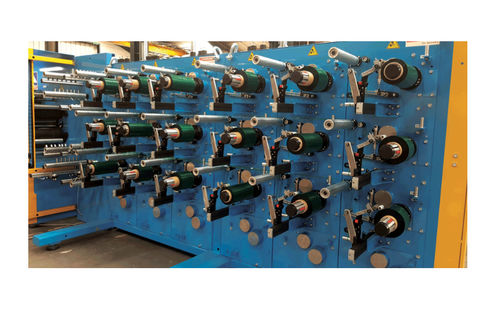

Spool Aquila, Aquila SD, Astrée Aquila, Gemini

Spooling Machine for Narrow Strips and Technical Materials | Calemard

The Calemard's spooling machine for narrow strips is designed for the slitting and spooling of narrow strips, tapes, films, adhesive materials and technical products requiring high-precision winding. Thanks to its precisely controlled product guiding system, the spooling technology distributes the strip evenly across the entire spool width, producing compact, stable spools with excellent unwinding quality.

Compared with conventional winding, the spool winding technology enables the production of spools containing 20 to 50 times more material, while maintaining outstanding unwinding performance. This significantly reduces spool changeovers, improves production efficiency, lowers logistics costs and optimizes downstream converting operations.

Designed for the most demanding materials, Calemard slitting and spooling lines are available with two spooling technologies to meet the requirements of every application.

SPOOLING TECHNOLOGIES
Moving Spool Technology
This technology is particularly suitable for sensitive, tacky, slippery or multilayer materials. The moving spool design minimizes mechanical stress during winding and produces perfectly formed spools, even with the most delicate materials.

Conventional Spooling Technology
The traversing guide arm system is recommended for narrow, stable products running at high production speeds. It produces compact, high-density spools ideally suited for automatic unwinding operations.

TECHNICAL DATA
Moving Spool Technology

• Maximum parent roll width: 400 mm
• Maximum parent roll diameter: 800 mm
• Maximum parent roll weight: 150 kg
• Maximum spool width: 500 mm
• Maximum spool diameter: 500 mm
• Maximum spool weight: 40 kg
• Maximum speed: up to 200 m/min
• Minimum slit width: 5 mm

Conventional Spooling Technology

• Maximum parent roll width: 400 mm
• Maximum parent roll diameter: 800 mm
• Maximum parent roll weight: 150 kg
• Maximum spool width: 250 mm
• Maximum spool diameter: 250 mm
• Maximum speed: up to 150 m/min
• Minimum slit width: 2 mm

KEY BENEFITS

• Spools containing 20 to 50 times more material than conventional winding.
• Reduced spool changeovers, minimizing production downtime.
• Consistent unwinding quality for downstream operations.
• Lower logistics and handling costs thanks to higher spool capacity.
• Reduced capital expenditure (CAPEX) through improved production efficiency.
• Excellent spool quality, even with sensitive materials.
• Ideal solution for complex, multilayer and technical materials.

COMPATIBLE MATERIALS

• Plastic films
• Technical films
• Adhesive tapes
• Composite materials
• Laminates
• Technical foams
• PTFE
• Mica
• Kapton®
• PET
• PET / Aluminum laminates
• Other specialty materials

APPLICATIONS

• Packaging
• Aerospace
• Automotive
• Flooring
• Insulation materials
• Wires and cables
• Holographic materials
• Technical material converting

MAIN TECHNICAL FEATURES

• Process: precision slitting and spool winding
• Available technologies: conventional spooling or moving spool technology
• Minimum slit width: down to 2 mm
• Maximum speed: up to 200 m/min
• Applications: technical materials, films, adhesive tapes and specialty products

WHY CHOOSE CALEMARD EQUIPMENT?
Since 1955, Calemard has been developing slitting, rewinding and spooling solutions for the most demanding converting applications. Our expertise in web tension control, winding quality and technical material processing enables us to design tailor-made equipment that meets the specific requirements of every production process.

OUR QHSE COMMITMENT

• ISO 9001: Quality Management System
• ISO 45001: Occupational Health & Safety Management System
• EcoVadis Silver Medal: Sustainability and CSR Performance

Looking for a high-performance spooling solution to increase your capacity and improve your production efficiency?
Contact our specialists to determine the spool winding technology best suited to your materials and manufacturing process.
