gas analyzer / moisture / dew-point / purity
Rapidox SF6 6100

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
gas analyzer gas analyzer - Rapidox SF6 6100


  • Measured entity:


  • Measured value:

    moisture, dew-point, purity

  • Configuration:

    portable, in situ

  • Other characteristics:

    monitoring, IP65, IP54, data acquisition, battery-powered, with built-in printer


The Rapidox SF6 6100 Portable is designed for controlling & monitoring the quality of SF6 in MV & HV gas insulated electrical equipment. Regular SF6 analysis as part of a maintenance schedule is essential to protect personnel & equipment. Early identification of decomposition products & moisture avoids unnecessary shutdowns, outages, failures & reduces maintenance costs.

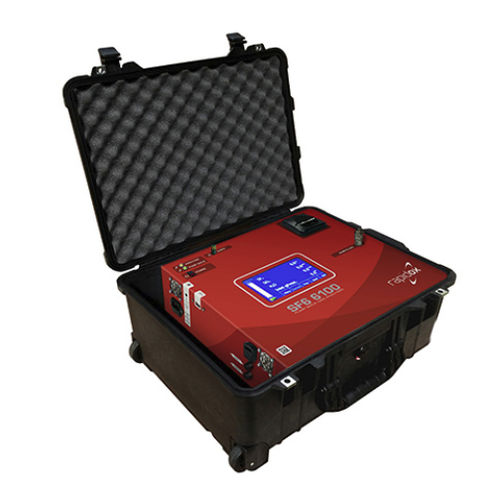

Housed in a heavy duty IP66 Peli case, this highly portable, lightweight field instrument weighs a total of only 8.5kg. A lithium battery provides over 8 hours of operation. Exceptional accuracy & stability are provided through specially selected sensors. Other measureable gases include H2O, SO2, HF, O2 & CF4. In order to accelerate the time taken in-between dew point readings, a unique Rapidri system is fitted to analysers measuring H2O.

All measured gases are analysed & data-logged simultaneously with only a few minutes required to achieve a stable reading. A gas output nozzle allows for the analyser to connect to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.

Pre-programmed with all current IEC & CIGRE test configurations, the analyser offers the facility to create customised tests that can be saved on the system for future use. Measurement data is viewed in real time on the display & is available for download via a USB memory stick.

Easy to operate & configure, the Rapidox SF6 6100 Pump Back features a 7" (18cm) full colour touch screen interface. An integrated thermal printer allows the user to print on-site test results. DN8 & DN20 couplings and a range of stainless steel braided sampling hoses are available for use with SF6 gas insulated equipment.
