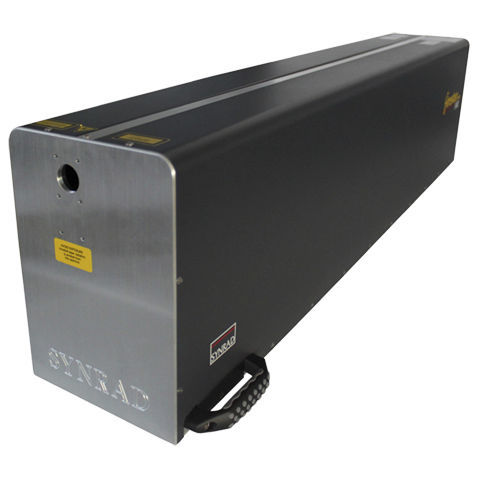

Pulsed laser i401

gasCO2hybrid

The compact, energy efficient Synrad i Series delivers 400W of near-perfect beam quality with 45° linear polarization for high-precision applications. Built around a hybrid waveguide/unstable resonator featuring fast rise/fall times and field replaceable, integrated 48V RF modules. i Series delivers immediate energy cost savings with best-in-class energy efficiency, up to 23% better than other 400W lasers. With its single tube design, i Series weighs 24% less than competitive lasers – an important factor when mounting on moving gantry systems or robotic motion systems. The i Series mid-power CO2 lasers are now available in both 500 W and 400 W models, delivering faster processing throughput and precision detail. The new i501 delivers more than 500 Watts of continuous wave (CW) power enabling faster throughput and precision detail. With the largest dynamic range in its class, the i501 laser switches seamlessly between low power for fine features, and high power for speed. Both the i501 and i401 include a TCP/IP web-based Internet interface that allows access to information about LED and RF module status – including voltage, current, and temperature measurements using a standard web browser to manage laser operation and ensure optimal performance. Built-in gas purge port for easy connection to nitrogen or CDA purge systems and an internal electromechanical shutter for operator safety make the i Series the ultimate OEM lasers.
