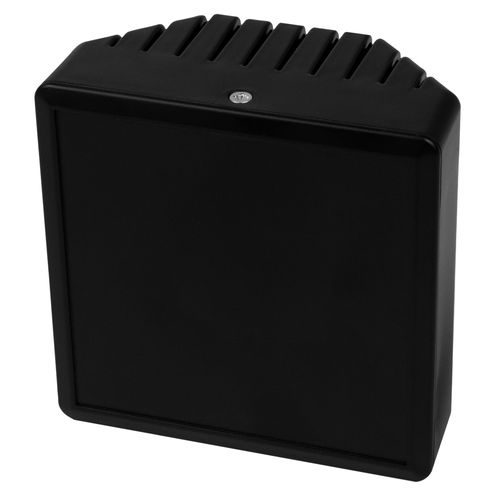

CB1500-10VBK-KIT - 1500 SERIES UNIVERSAL SMART ENCLOSURE KIT, BLACK, ABS UL94-V0, 100X100X53.25MM
1500 Series Universal Smart Enclosure Kit Black, Vented wall 100x100x53.25mm. This UK manufactured enclosure is moulded in UL94-V0 ABS. Ideal for applications such as safety monitoring, door entry control, security sensors, social distance monitoring, air detection etc.
Includes versatile wall mounting system providing a variety of mounting options
Multi-faceted design can be used in a variety of orientations
Two sets of PCB pillars in both the lid and base allow multiple PCB mounting options
Lid panel secured by single screw for ease of assembly
Lid features a recess; ideal for touch pads, digital displays and overlays
Can be fitted to the corner of a room
Moulded in UL94-V0 ABS
Available in vented and unvented versions
Available in black, white or grey
Manufactured in the UK
External Length (mm) - 100
External Width (mm) - 100
External Height (mm) - 53.25
Internal Length (mm) - 96
Internal Width (mm) - 96
Internal Height (mm) - 48
Weight (G) - 87
Base Material - Plastic
Material Type - ABS UL94-V0
Colour - Black
UL Rating - UL94-V0
IK Rating - N/A
IP Rating - IP30
Wall Mount - Yes
Brand - CamdenBoss
Vented Sided - Yes
Development Board - N/A
Wall Thickness (mm) - 2
Country Of Origin - Great Britain (GB)
