Electronic equipment enclosure CSACST001- 1100 Series
built-inrectangularABS

electronic equipment enclosure
electronic equipment enclosure
electronic equipment enclosure
electronic equipment enclosure
electronic equipment enclosure
Add to favorites
Compare this product


Characteristics

Construction
built-in
Configuration
rectangular
Material
ABS
Application
for sensors, industrial, electronic equipment, indoor, for instrumentation, for electronics, for controllers, thermostat, monitoring, medical, for printed circuit boards, operator interface, for displays, for laboratories
Protection level
UL, IP54
Other characteristics
screw cover, lightweight, control
Width

50 mm (2 in)

Height

35 mm (1 in)

Description

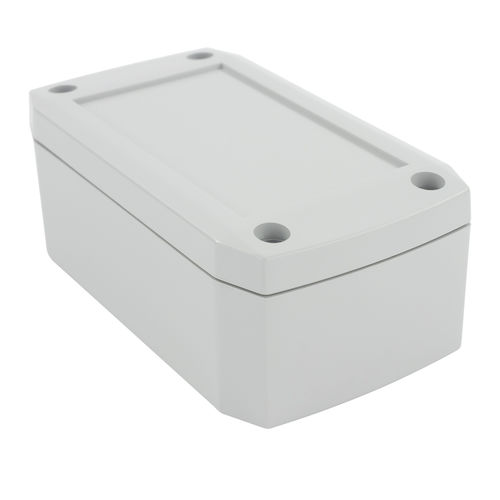

CSACST001 - 1100 SERIES RECESSED ELECTRONICS ENCLOSURE WITH SOLID LID, GREY, ABS UL94-V0, 90X50X35MM 1100 Series Recessed Electronics Enclosure is ideal for a range of user facing electronics devices and technology in industries such as industrial, medical and IoT. Designed with aesthetically pleasing external bevelled edges and smooth curved ends and straight sides Lid and base moulded in UL94-V0 ABS Lid mounted by four thread forming screws 1.2mm recess in both the lid and base for product labels and overlays Deep profile maximises the internal volume for increased component and PCB space This enclosure is 100% recyclable and manufactured in the UK Plastic standoffs in base for mounting of PCBs Excellent properties for machining and customisation Also available with a transparent lid 1100 series has been designed to meet the requirements of IP54 External Length (mm) - 90 External Width (mm) - 50 External Height (mm) - 35 Internal Length (mm) - 85 Internal Width (mm) - 45 Internal Height (mm) - 2.5 Weight (G) - 54 Base Material - Plastic Material Type - ABS UL94-V0 Colour - Grey UL Rating - UL94-V0 IK Rating - N/A IP Rating - IP54 Brand - CamdenBoss Size - 90 x 50 x 35 Development Board - N/A Wall Thickness (mm) - 2.5 Country Of Origin - Great Britain (GB)
