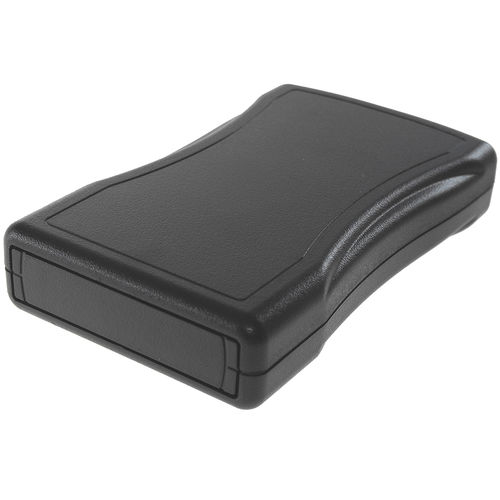

CHH452ABK, 45 SERIES PALM CASE ELECTRONIC ENCLOSURE, BLACK, TEXTURED, AA BATTERY COMPARTMENT, SIZE 2 - 139.5X82.5X26
Handheld Electronics Enclosure for industrial, IoT, diagnostic and healthcare electronic devices
Moulded in UL94-5VA Flame Retardant ABS
Lid mounted by four self-tapping screws
Removable end panel for ease of access and ideal for machining
ABS end panel version as standard, infra-red end panel version to order
Sliding battery compartment lid options for AA or 9V PP3 batteries
Plain / no battery compartment version available to order
Textured lid versions for consistent all over surface finish
Smooth recess lid version for membrane keypads or overlays
PCB pillars moulded in lid and base, screws available to order
45 series has been designed to meet the requirements of IP54
External Length (mm) - 139.5
External Width (mm) - 82.5
External Height (mm) - 26
Internal Length (mm) - 136
Internal Width (mm) - 71
Internal Height (mm) - 20
Weight (G) - 12.1
Base Material - Plastic
Material Type - ABS UL94-5VA
Colour - Black
UL Rating - UL94-5VA
IK Rating - N/A
IP Rating - IP54
Special Features - Battery Compartment
Operating Temperature - 85 Deg C
Brand - CamdenBoss
Battery Door - Yes
Battery Compartment Type - AA
Development Board - N/A
