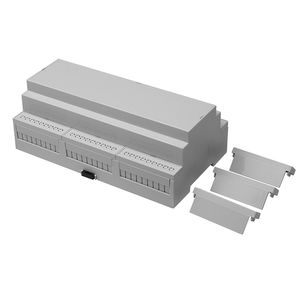

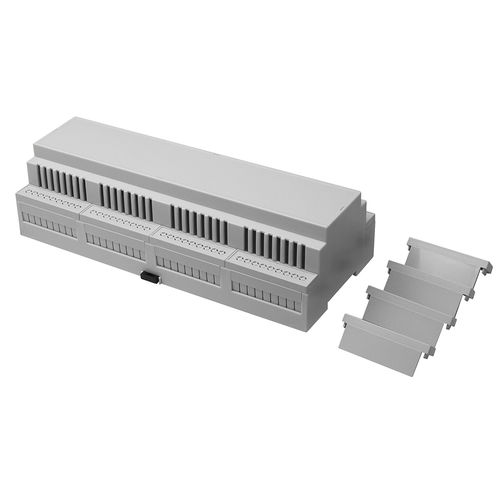

CNMB/12V/KIT - DIN RAIL MODULE BOX KIT, POLYCARBONATE ENCLOSURE, INDUSTRIAL IOT ELECTRONICS HOUSING
CNMB DIN Rail Modular Enclosure, Standard Height Module Box Kit, Size 12, Open Top, Vented, Both Sides Open
Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Carries up to 3 PCBs horizontally or 2 vertically
Snap fit terminal cover options for IP20 finger protection
Snap in covers available in grey, clear, transparent red and smoked
Open top, solid top, vented and extended wall kits are available
Easily customised covers and terminal guards
Suitable enclosure for lighting and heating smart controllers
External Length (mm) - 212
External Width (mm) - 90
External Height (mm) - 58
Weight (G) - 150
Base Material - Plastic
Material Type - Polycarbonate UL94-V0
Colour - Light Grey
UL Rating - UL94-V0
IK Rating - N/A
IP Rating - IP20
Brand - CamdenBoss
DIN Rail Mounting - Yes
Size - 12
Vented Sided - Yes
Development Board - N/A
