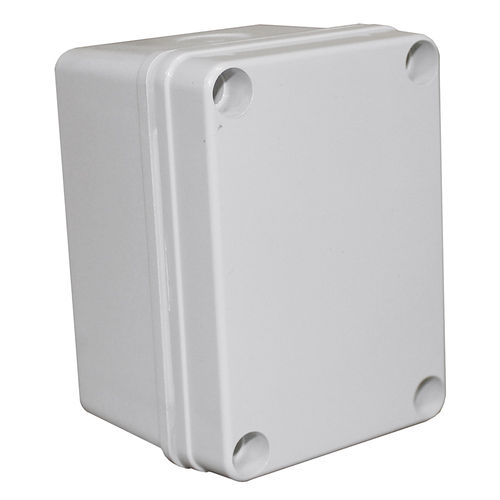

CHDX6-221 - X6 SERIES IP67 ELECTRICAL KNOCKOUT ENCLOSURE, GREY, POLYCARBONATE UL94-V0, 110X80X70MM
IP67 Polycarbonate enclosure with a solid lid featuring metric knockouts for cable glands. The X6 is designed for electrical junction boxes, weatherproof IoT devices or sensory enclosures making it perfect for the growing 4.0 industry 110x80x70
X6 series has been designed to meet the requirements of IP67
IK07/08 impact tested
Screw type lid with knock out base
Moulded in high quality polycarbonate
PCB pillars in the base for PCB mounting
Gasket supplied with the enclosure
Clear lid option available
Captive, polyamide screws included
Designed for Industrial Enclosures, Sensor enclosures, Junction enclosures
Ideal for the growing Industry 4.0 and IIoT enclosure sectors
External Length (mm) - 110
External Width (mm) - 80
External Height (mm) - 70
Weight (G) - 201.2
Base Material - Plastic
Material Type - Polycarbonate UL94-V0
Colour - Grey
UL Rating - UL94-V0
IK Rating - IK08
IP Rating - IP67
Wall Mount - Yes
Operating Temperature - -40 Deg C to 110 Deg C
Brand - CamdenBoss
Size - 110x80x70
Development Board - N/A
