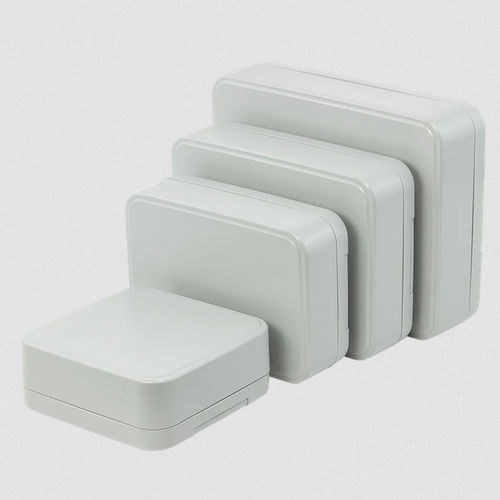

Wall enclosure Node series
rectangularpolycarbonateindustrial

Wall enclosure - Node series - CamdenBoss Ltd - rectangular / polycarbonate / industrial
Wall enclosure - Node series - CamdenBoss Ltd - rectangular / polycarbonate / industrial
Add to favorites
Compare this product

Characteristics

Construction
wall
Configuration
rectangular
Material
polycarbonate
Application
industrial, outdoor, monitoring, for sensors, medical
Protection level
waterproof, IP66, IP67, harsh environments
Other characteristics
custom, compact, protection, control

Description

CamdenBoss launch NEW Nodes & Hubs: IP66/67-rated enclosures designed for IoT sensor nodes, outdoor gateways and edge computing in harsh environments.


Product range
  • Compact sensor Nodes (40–180mm profile)
  • Industrial Hubs (80mm profile)
  • From compact sensor nodes to industrial hub enclosures covering outdoor and harsh-environment applications




Key features
  • IP66 / IP67 waterproof and dustproof protection
  • UV resistant materials for continuous outdoor exposure
  • Fire-rated materials: UL-94 V0 and UL-746C f1
  • PCB-ready interior with 4 pillars in lid and base supporting 3mm thread forming or No.4 self-tapping screws
  • Multiple mounting options: wall, pole, DIN-rail; keyhole and slot orientations; concealed or flanged finishes
  • Raised feet for improved cable management
  • Flexible customisation: CNC cutouts, digital printing and branding
  • UK engineered and manufactured with in-house CNC, printing and assembly




Models & dimensions (selected)
  • CBNODE-01-GY — External: 105 x 105 x 40 mm; Internal: 96 x 96 x 20 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C
  • CBNODE-02-GY — External: 135 x 95 x 40 mm; Internal: 126 x 86 x 20 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C
  • CBNODE-03-GY — External: 155 x 115 x 40 mm; Internal: 146 x 106 x 20 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C
  • CBNODE-04-GY — External: 180 x 140 x 45 mm; Internal: 171 x 131 x 25 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C
  • CBHUB-01-GY — External: 105 x 105 x 80 mm; Internal: 96 x 96 x 57 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C
  • CBHUB-02-GY — External: 162 x 162 x 80 mm; Internal: 152 x 152 x 57 mm; IP66; UL-94 V0 / UL-746C f1; RAL 7035; IK-07; Temperature (model): -40C to 110C




Applications
  • Smart Agriculture — environmental monitoring, climate control, soil moisture sensors, weather stations
  • Smart Construction — crack displacement loggers, vibration monitoring, site safety sensors
  • Industry 4.0 — industrial enclosure solutions for factory automation and machine monitoring
  • Smart Cities — pedestrian alert systems, traffic monitoring, street lighting control
  • Environmental Monitoring — temperature, humidity, air quality, medical environment sensors
  • Wireless Communications — LoRaWAN gateways, cellular modems and IoT gateway enclosures
  • Water Management, Access Control, Wildlife Monitoring and Process Control




Technical specifications
  • Ingress protection: IP66 / IP67 (waterproof & dustproof)
  • Material: UV-stable polycarbonate, UL-94 V0 fire rating; UL-746C f1 UV stability for outdoor use
  • Impact resistance: IK-07
  • Colour: RAL 7035 (standard)
  • PCB-ready interior: 4 pillars in lid and base for 3 mm thread forming or No.4 self-tapping screws
  • Mounting: wall, pole, DIN-rail; concealed or flanged finishes; keyhole and slot options
  • Cable management: raised feet for improved cable routing
  • Operating temperature: model listings indicate -40C to 110C; typical suitability cited across cold-to-warm climates (general references include -40C to 85C)
  • Customization & value-added services: custom CNC cutouts, digital printing & branding, pressure vents and cable gland options
  • Available documentation: product datasheets
