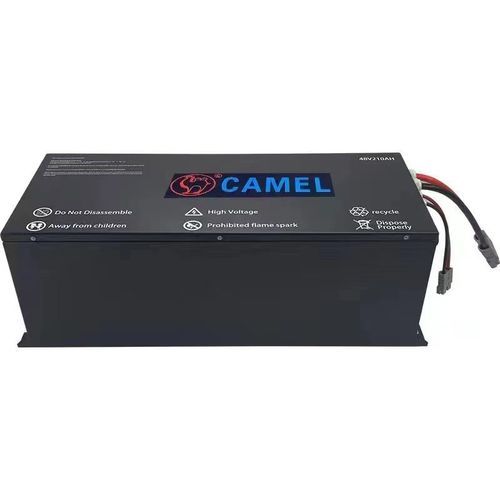

Lithium-ion battery S series

for golf cartshigh-powerhigh-performance

Application
Camel lithium-ion golf cart battery family provides dedicated traction power for golf carts and other lightweight electric vehicles. Designed for continuous use in golf operations, sightseeing cars, patrol vehicles, electric tricycles and aerial work platforms where reliable, repeatable discharge and long cycle life are required.

Special Features
Superior lithium-ion technology

• Advanced cell chemistry for sustained capacity and long cycle life (3,500+ deep cycles).
• Fast-charging capability: typical full charge in 2–3 hours depending on model.
• Higher usable energy density compared with lead-acid alternatives.

Long-lasting battery life for extended golfing sessions
Engineered life expectancy of 10+ years under recommended operating conditions, reducing replacement frequency and total cost of ownership versus traditional lead-acid batteries.

Lightweight and space-saving design
Approximately one third the weight of comparable lead-acid batteries and compact form factors for straightforward installation in space-constrained vehicles.

Enhanced safety features
Integrated protections including overcharge and overdischarge protection, temperature monitoring and short-circuit prevention to ensure safe operation in varied field conditions.

Wide compatibility and easy installation
Available in multiple voltages and capacities to match common golf cart platforms; plug-and-play installation reduces downtime.

Technical data
Type | Voltage (V) | Capacity (AH) | Driving Distance (KM) | Discharge (A/10S) | Quick Charge (H)
S3856 | 38 | 56 | 25-35 | 200 | 2
S38105 | 38 | 105 | 60-70 | 200 | 2
S5156 | 51 | 56 | 35-50 | 200 | 2
S51105 | 51 | 105 | 65-80 | 200 | 2.5
S51105P | 51 | 105 | 65-80 | 315 | 2
S51160 | 51 | 160 | 100-130 | 200 | 3
S51160P | 51 | 160 | 100-130 | 315 | 3
S72105P | 76 | 105 | 100-130 | 315 | 2.5

Specifications

• S3856 — Voltage: 38 V; Capacity: 56 AH; Driving distance: 25–35 KM; Discharge (A/10S): 200; Quick charge: 2 H.
• S38105 — Voltage: 38 V; Capacity: 105 AH; Driving distance: 60–70 KM; Discharge (A/10S): 200; Quick charge: 2 H.
• S5156 — Voltage: 51 V; Capacity: 56 AH; Driving distance: 35–50 KM; Discharge (A/10S): 200; Quick charge: 2 H.
• S51105 — Voltage: 51 V; Capacity: 105 AH; Driving distance: 65–80 KM; Discharge (A/10S): 200; Quick charge: 2.5 H.
• S51105P — Voltage: 51 V; Capacity: 105 AH; Driving distance: 65–80 KM; Discharge (A/10S): 315; Quick charge: 2 H.
• S51160 — Voltage: 51 V; Capacity: 160 AH; Driving distance: 100–130 KM; Discharge (A/10S): 200; Quick charge: 3 H.
• S51160P — Voltage: 51 V; Capacity: 160 AH; Driving distance: 100–130 KM; Discharge (A/10S): 315; Quick charge: 3 H.
• S72105P — Voltage: 76 V; Capacity: 105 AH; Driving distance: 100–130 KM; Discharge (A/10S): 315; Quick charge: 2.5 H.
