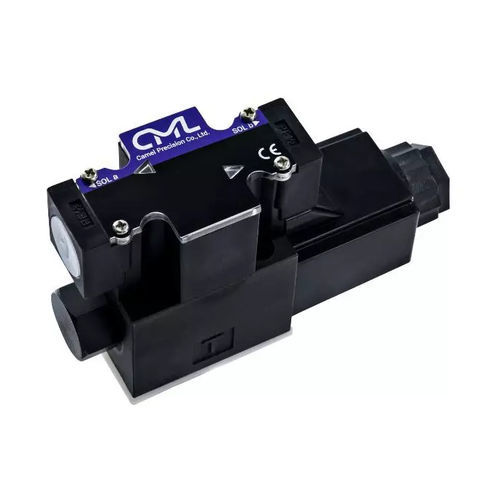

Direct-operated solenoid valve WH42-G02-B2-A220-N

2-wayhydraulicsmall

Solenoid Operated Directional Valves, Solenoid Actuated Directional Spool Valve, Directional Control Valves CML solenoid valves are used in the direction switching operation of machine tools, metal processing machinery, and various hydraulic systems. Small size, sensitive switch action, fast switching and high efficiency. Applicable to international standards such as ISO, CETOP, NFPA and DIN. The WH series has two sizes, 6-diameter and 10-diameter, with a maximum operating pressure of 210 bar, a maximum allowable back pressure of 100 bar, and a flow range of 63 ~ 120 (LPM). There is a complete range of products, and spool type can be selected according to the needs of the circuit, and products with reverse assembly can be supplied. For Spool type, Pressure Drop Curve and Assembly Instruction or related information, please refer to the attachment at the bottom of the page or contact CML professionals. Feature High pressure, large flow, low noise, Smooth motion when switching. Dual-channel design, low impedance, high efficiency. ISO standard measurements, easy to install. Clear directional light indication. 100% inspected, stable high quality. Application Metal Processing Cutting machinery: Four-post cutting machine, plane cutting machine, gantry cutting machine. Die casting machine industry: Hot and Cold types die casting machine, Aluminum extrusion machine, Vertical squeeze Casting Machine, Gravity die casting machine. Machine Tool Industry: CNC lathe, CNC milling machine, CNC turning and milling machine, CNC Surface grinder machine, band saw, circular saw.
