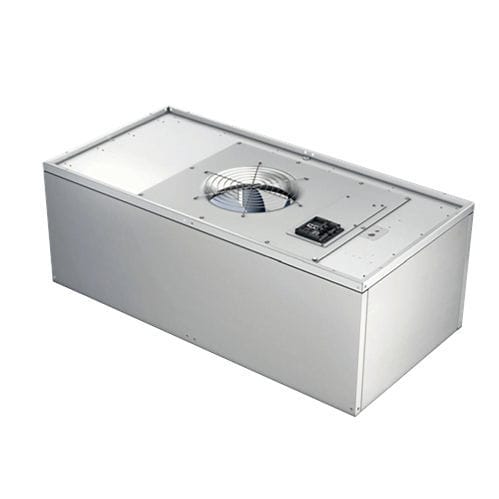

Centrifugal filtration unit CamFFU series

airfor clean roomsHEPA

Flexible LAF-solution without ceiling grid Low sound power level Low power consumption Maintenance-free high-quality EC-fan Available for LON, Modbus or 0-10V control Application Units can be screwed together to form individual cleanroom ceilings e.g. for machine enclosures, clean work cabins or mini environments from ISO 14644 class 8.0 to ISO 1.0 Max temperature (°C) 0 - 40ºC Voltage usage 200...240V Installation options System can span up to 4800 mm x 4800 mm or supported by pedestals Comment Construction: Powder coated steel or stainless steel housing Fan: Efficient EC motor with backwards-curved blades Airflow control: BUS controlled system or handheld control. Also available as CamFFU_IS-EC_sce for easy 0-10V potentiometer control Filter: Megalam H14, U15 or U16, MD or MX with Camfil Sil-Gel gasket to be ordered separately
