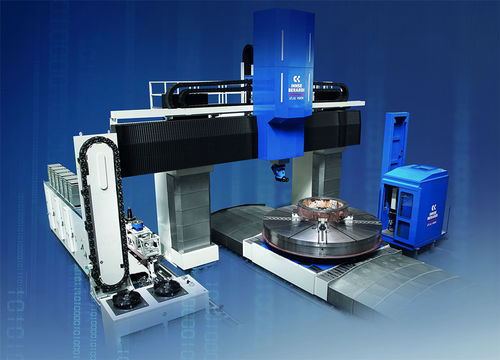

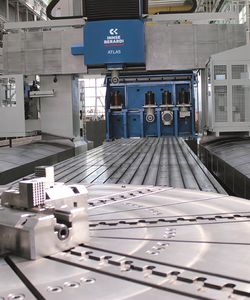

5-axis CNC milling center Atlas Vision

verticalwith rotary tablewith fixed portal

Family of high speed vertical milling centres, with linear rolling guideways. Innse-Berardi’s innovative flexible design concept is the basis of these machines. The core parts of all machines are identical: crossbeam, ram and attachments. The flexible, modular design offers three different configurations: P Planomiller type - fixed portal G Gantry type - lower rails GU Gantry type - upper rails A complete range of advanced milling attachments provides the optimum solution for each user’s application requirements. The use of standard off-the-shelf components increases the reliability of the machines while reducing cost and delivery times. Vertical turning tables Both, Atlas Vision as well as Atlas Hydro can be equipped optionally with Turning Tables for Turning, Boring, Milling, Turn-Milling and Grinding. The full range is featuring hydrostatic main bearings. A complete range of advanced attachments provides the optimum solution for the different application requirements. The modular design covers a broad range of different sizes: Max. turning diameter up to 5,000 mm Turning table diameter up to 4,000 mm Turning table load up to 50 ton Turning table speed up to 200 rpm Turning table power up to 150 kW
