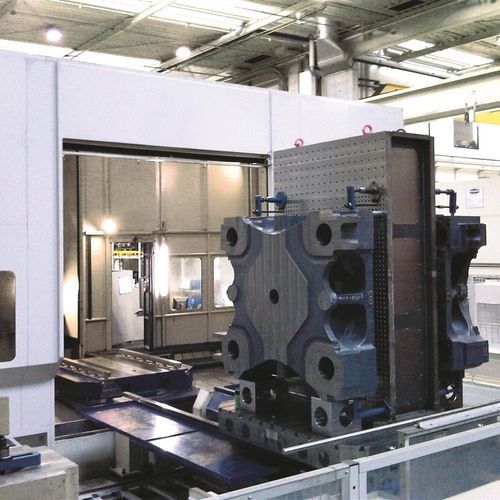

Horizontal boring and milling center Innse-Berardi Aries Vision
for aerospace applicationshigh-performancehigh-speed

horizontal boring and milling center
horizontal boring and milling center
Add to favorites
Compare this product


Characteristics

Spindle orientation
horizontal
Other characteristics
for aerospace applications, high-performance, high-speed, 3-axis, 5-axis
Y travel

Min.: 2,000 mm (79 in)

Max.: 4,000 mm (157 in)

Power

Min.: 40 kW (54.38485 hp)

Max.: 60 kW (81.57727 hp)

Spindle diameter

Min.: 130 mm (5 in)

Max.: 160 mm (6 in)

Description

Aries Vision High speed, top performance boring and milling center with linear guideways and roller pads, suitable for 3 and full 5 axes machining. Aries Vision is recognized for its versatility, which permits its use in several application fields: general engineering, aerospace parts, oil & gas, energy, etc. It is possible to configure the machine with head and boring spindle versions or head with power driving shaft and built-in C axis combined with additional attachment heads. The flexibility of the center can offer a wide range of solutions, from the standalone machine to a full FMS system. A complete range of advanced milling attachment heads provides the optimum solution for each user’s application requirements. The use of standard off-the-shelf components increases the reliability of the machines while reducing cost and delivery times. Attachment heads The Aries Series milling and boring machines are equipped with automatic head attachment changing capabilities for the installation and use of different heads. The machines also have automatic clamping and tool clamping capabilities. In addition to the production of standard accessories, Innse-Berardi is able to develop special accessories to meet any production requirement. Mod. TUM Universal head with two continuous working axes Mod. TUAR Head with two continuous positioning axes Mod. TWI Universal two indexed axes Mod. SLIM Narrow right angle head Mod. TSAR Right angle head Mod. UT Facing head Mod. FXX Extension head Mod. Moltiplicatore Speed multiplier
