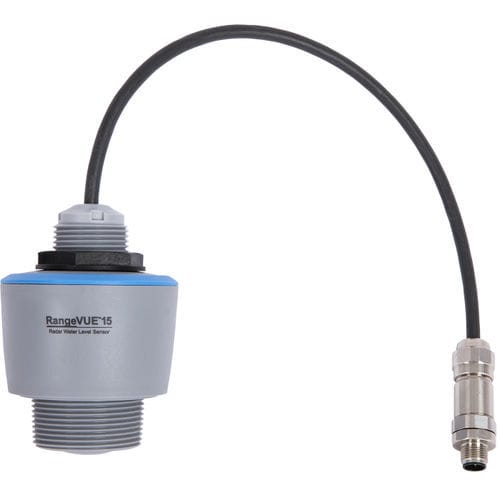

Water level sensor RangeVue™ 15radarSDI-12for storage tanks
Add to favorites
Compare this product
Characteristics
- Technology
- radar
- Medium
- for water
- Interface
- SDI-12
- Applications
- for storage tanks, river, for monitoring
- Other characteristics
- submersible, corrosion-resistant, IP68, IP66
- Level range
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
The RangeVue™15 is a non-contact, radar water-level sensor used for monitoring the water level of rivers, lakes, and reservoirs. Using 80 GHz radar technology, it directly measures the distance between the sensor face and the water surface. This distance can be used to determine water level or stage. The sensor is ideal for areas where submersible sensors can be damaged due to corrosion, contamination, flood-related debris, or lightning.
Benefits and Features
- Non-contact water-level measurement
- Meets United States Geological Survey (USGS) Office of Surface Water (OSW) requirements for accuracy
- SDI-12 version 1.4 functionality
- Configurable over SDI-12
- Bluetooth-configurable over smartphone, tablet, or PC
The RangeVue 15 or 30 can be paired with the Aspen™10 Internet of Things (IoT) Edge Device. To get next-gen IoT solutions for advanced water-level monitoring, click the image below:
