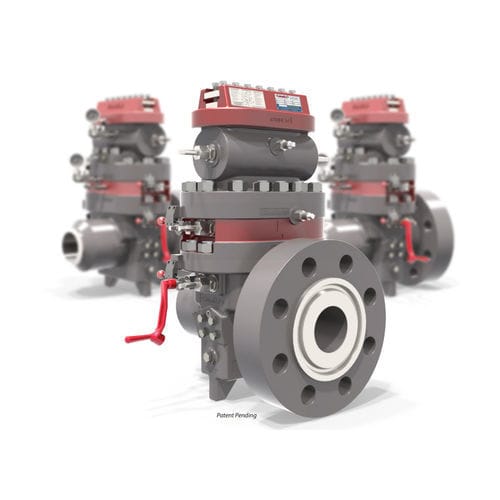

Orifice flow meter DBB

volumefor liquidsflange

This brings the unmatched safety of double block and bleed functionality to the already exceptional quality and performance of the Canalta lineup of orifice fittings. Protection from high pressure & toxic flow media Accurate flow measurement Highest quality manufacturing Available as fitting only, retrofit or complete AGA-3 or ISO-5167 meter. Design Orifice fittings supplied in Canada are built in accordance with the ABSA Quality Control Program. Industry Canada Approval Number AF-0014. In compliance with ASME 16.34 and ASME 16.5, ASTM specifications, AGA-3 Latest Edition and ISO-5167. Body Materials A216 WCB, A216 WCC, A352 LCC, A358 CF8M, A995 Gr4A, A995 Gr6A, Custom Internal Parts AISI 4130 Carbon Steel, 316 or A351 CF8M Stainless Steel Duplex Super Duplex Sizes and ANSI Class 2" through 12", 150 through 2500 ANSI raised face flange 14" through 16", 150 through 1500 ANSI raised face flange 18" through 30", 150 through 600 ANSI raised face flange 600, 900 and 1500 flanges also available in RTJ face flange U/S D/S Connections Flangeneck design (weldneck U/S, flange D/S) Flange x Flange Weldneck both end Sealing Compounds Seal bar - HNBR O-ring standard, gasket optional Shafts - Teflon packing standard, HNBR O-ring optional Inner valve - Grease seal standard, HNBR O-ring optional Orifice plate - Type “K” 2000 Edition formed HNBR seal on a 316 SS retainer ring Dual Ring HNBR O-rings standard on a 316 SS retainer ring assembly Teflon Snap Seal two-piece virgin Teflon assembly Line Bore I.D. Tolerance In conformance with AGA-3 Latest Edition and ISO-5167 Eccentricity Repeatability In conformance with AGA-3 Latest Edition and ISO-5167
