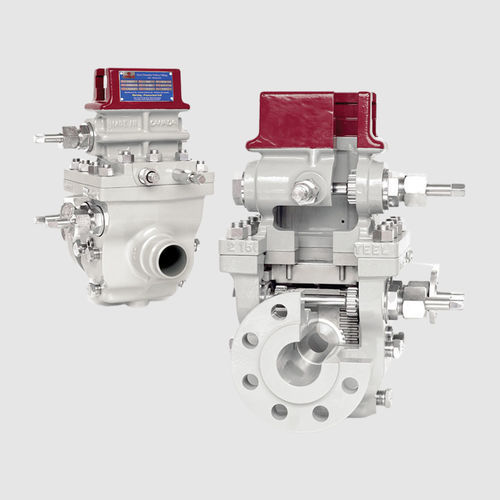

Orifice flow meter

volumefor liquidsDN50 - 2"

The Canalta Dual Chamber Orifice Fitting allows for accurate flow measurements, orifice plate inspection and changing without breaking apart or depressurizing the flow line. All fittings come standard with a documentation package including hydro-test, function test, inner valve seal test, quality control inspection and material test reports. Traceability is maintained in accordance with the ISO-9001 Quality Control Program. The fittings are manufactured within the guidelines of ASME 16.34 and ASME 16.5. When required, radiography, stress relief, ultra-sonic, magnetic particle, and liquid dye penetration tests can be performed with the relevant reports submitted. Design Orifice fittings supplied in Canada are built in accordance with the ABSA Quality Control Program and carry a CRN registration number. Industry Canada Approval Number AF-0014. In compliance with ASME 16.34 and ASME 16.5, ASTM specifications, AGA-3 Latest Edition and ISO-5167. Body Materials A216 WCB, A216 WCC, A352 LCC, A358 CF8M, A995 Gr4A, A995 Gr6A, Custom Internal Parts AISI 4130 Carbon Steel, 316 or A351 CF8M Stainless Steel Sizes and ANSI Class 2" through 12", 150 through 2500 ANSI raised face flange 14" through 16", 150 through 1500 ANSI raised face flange 18" through 30", 150 through 600 ANSI raised face flange 600, 900 and 1500 flanges also available in RTJ face flange U/S D/S Connections Flangeneck design (weldneck U/S, flange D/S) Flange x Flange Weldneck both end Internal Bore Size 40, 60, 80, 100, 120, 160 and custom sizes Sealing Compounds Seal bar - HNBR O-ring standard, gasket optional Shafts - Teflon packing standard, HNBR O-ring optional
