Orifice flow meter

volumefor liquidsDN50 - 2"

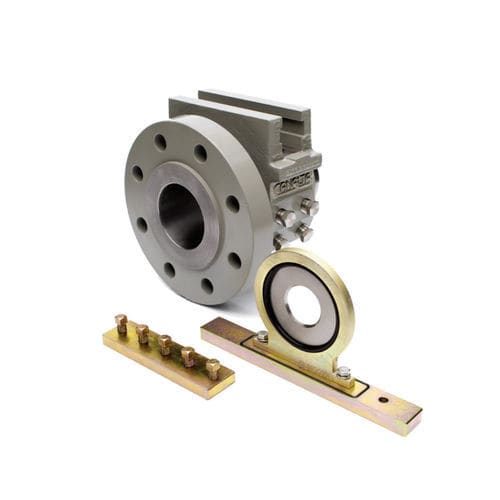

The Canalta Single Chamber Orifice Fitting is designed and constructed to allow for ease of orifice plate replacement or inspection after depressurization. All fittings come standard with a documentation package including hydro-test, function test, inner valve seal test, quality control inspection and material test reports. Traceability is maintained in accordance with the ISO-9001 Quality Control Program. The fittings are manufactured within the guidelines of ASME 16.34 and ASME 16.5. When required, radiography, stress relief, ultra-sonic, magnetic particle, and liquid dye penetration tests can be performed with the relevant reports submitted. Design Orifice fittings supplied in Canada are built in accordance with the ABSA Quality Control Program and carry a CRN registration number. Industry Canada Approval Number AF-0014. In compliance with ASME 16.34 and ASME 16.5, ASTM specifications, AGA-3 Latest Edition and ISO-5167. Body Materials SA216 WCB, SA352 LCC or A351 CF8M Sizes and ANSI Class 600, 900 and 1500 flanges also available in RTJ face flange U/S D/S Connections Flangeneck design (weldneck U/S, flange D/S) Flange x Flange Weldneck both end Internal Bore Size 40, 60, 80, 100, 120, 160 and custom sizes Sealing Compounds Seal bar - HNBR O-ring standard, gasket optional Orifice plate - Type “K” 2000 Edition formed HNBR seal on a 316 SS retainer ring Dual Ring HNBR O-rings standard on a 316 SS retainer ring assembly Teflon Snap Seal two-piece virgin Teflon assembly
